Front Door Checker Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When the front door checker securing bolts are removed, the front door may open until it contacts the front fender panel causing the front door and the front fender panel to be damaged. Before removing the front door, overlap and adhere the protective tape to the position shown in the figure and be careful not to damage the front door and the front fender panel.
Fig 1: Removing Front Door Checker
G09787502Courtesy of MAZDA MOTORS CORP.
  1. Fully close the front door glass.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Remove the bolt shown in the figure.

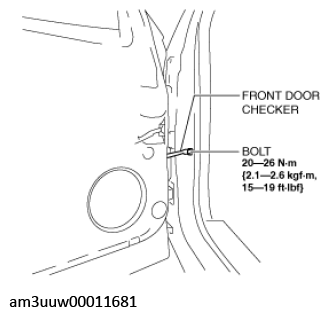

    Fig 2: Removing Bolt From Front Door Checker
    G11447645Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts shown in the figure.

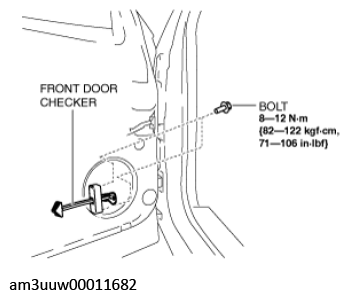

    Fig 3: Removing Bolt From Front Door Checker With Torque Specification
    G11447646Courtesy of MAZDA MOTORS CORP.
  7. Pull out the front door checker from the front speaker installation hole.
  8. Install in the reverse order of removal.
