Windshield Washer Hose A: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Disconnect the windshield washer hose A from the washer motor.

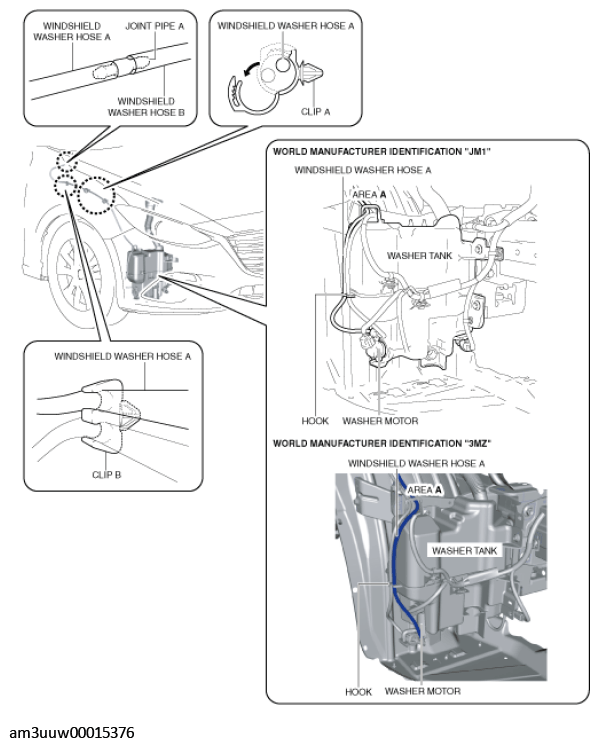

    Fig 1: Removing Windshield Washer Hose A From Washer Tank Hook
    G11453091Courtesy of MAZDA MOTORS CORP.
  3. Remove the windshield washer hose A from the washer tank hook. (See WINDSHIELD WASHER HOSE A INSTALLATION NOTE .)
  4. Pull out the windshield washer hose A from area A of the washer tank.
  5. Remove the windshield washer hose A from the clips A and B.
  6. Disconnect the windshield washer hose B from the joint pipe A.
  7. Remove the windshield washer hose A.
  8. Install in the reverse order of removal.
