Windshield washer hose A installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When installing windshield washer hose A to the washer tank hook, align the hook with the upper part of the white mark and install. (world manufacturer identification "JM1")
When installing windshield washer hose A to the washer tank hook, align the hook with the upper part of the gray mark and install. (world manufacturer identification "3MZ")

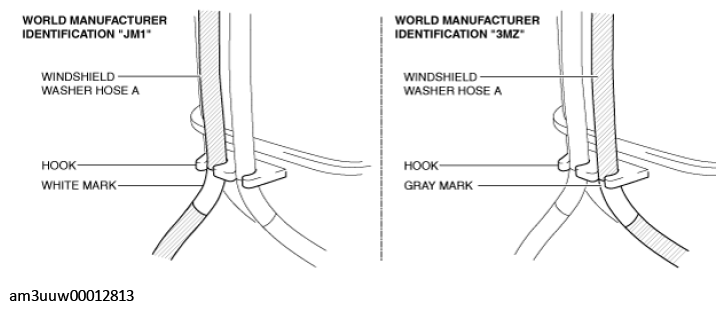

Fig 1: Aligning Hook With Upper Part Of White Mark
Courtesy of MAZDA MOTORS CORP.
