Auto-stop Operation Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
Disconnect the connector. (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
Apply battery positive voltage to rear wiper motor terminal B and connect terminals A and C to the ground, and then operate the rear wiper motor.

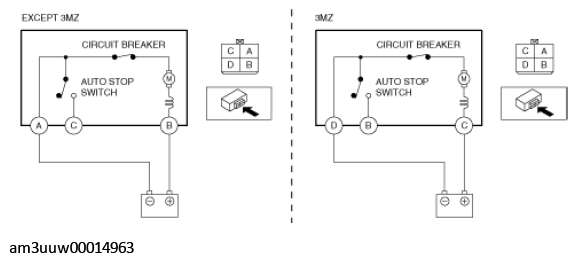

Fig 1: Applying Battery Positive Voltage To Rear Wiper Motor Terminal B And Connect Terminal A To Ground
Courtesy of MAZDA MOTORS CORP.
Disconnect the battery voltage from terminal B during rear wiper motor operation, and stop the rear wiper motor mid-way.
Verify that the rear wiper stops at the park position as a result of the auto-stop operating.
- If the rear wiper does not stop at the park position, replace the rear wiper motor. (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
