Console Side Panel No. 2

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Console side panel No. 1 (See CONSOLE SIDE PANEL NO. 1 .)

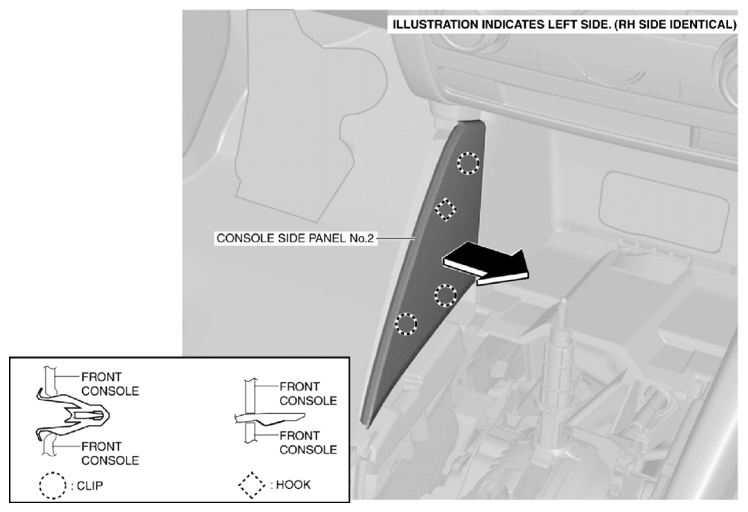

  3. Move console side panel No. 2 in the direction of the arrow shown in the figure and detach the clips and the hook from the front console.
    Fig 1: Moving Console Side Panel No. 2
    G10939146Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
