Console Side Panel No. 1

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

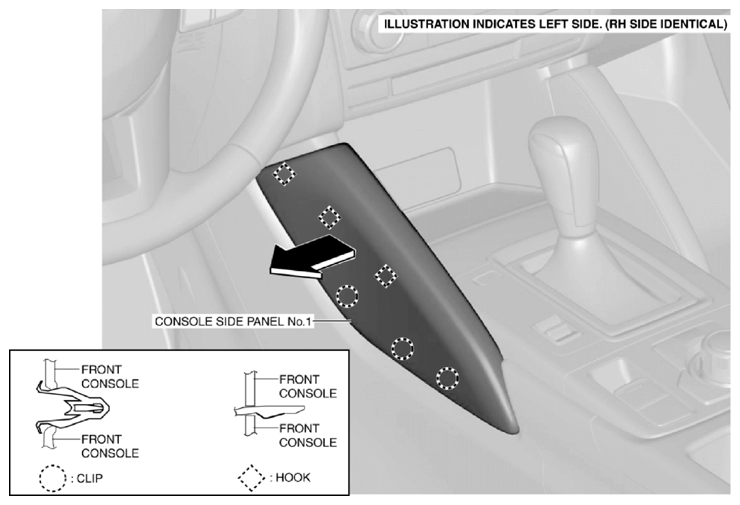

  1. Move console side panel No. 1 in the direction of the arrow shown in the figure and detach the clips and hooks from the front console.
    Fig 1: Moving Console Side Panel No. 1
    G10939145Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
