Converter Housing Side

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  3. Disconnect the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  4. Remove the oil seal using a flathead screwdriver.

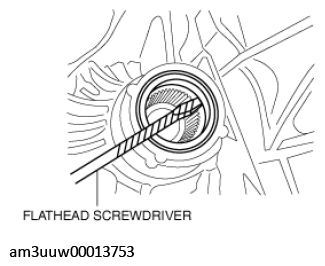

    Fig 1: Removing Oil Seal Using Flathead Screwdriver
    G11542613Courtesy of MAZDA MOTORS CORP.
  5. Using the SSTs and a hammer, install a new oil seal.

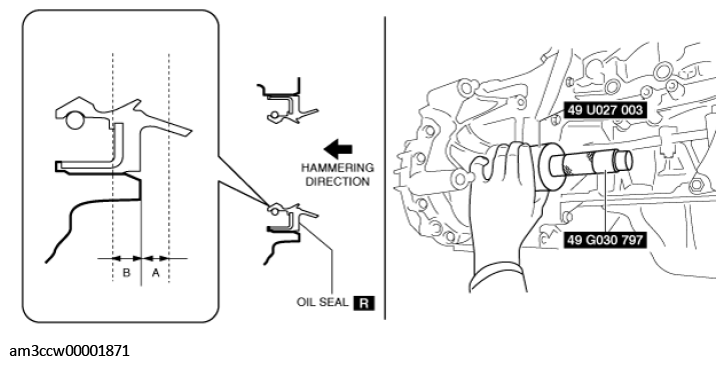

    Fig 2: Installing Oil Seal Using SST And Hammer
    G11542614Courtesy of MAZDA MOTORS CORP.
    1. 0.5 mm {0.02 in}
    2. 0.8 mm {0.03 in}
  6. Coat the lip of the oil seal with ATF.
    CAUTION:
    • The oil seal is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.
  7. Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  9. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
  10. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
