Front Drive Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
  1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  4. Drain the manual transaxle oil or ATF. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R] .) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL] .)
  5. Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)

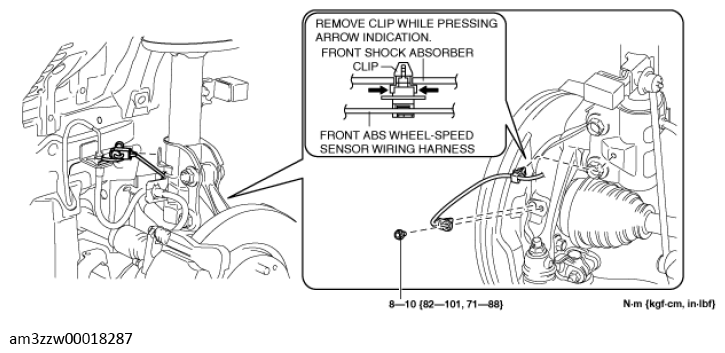

    Fig 1: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness
    G11450484Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.
  8. After installation, add the specified manual transaxle oil or ATF. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R] .) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL] .)

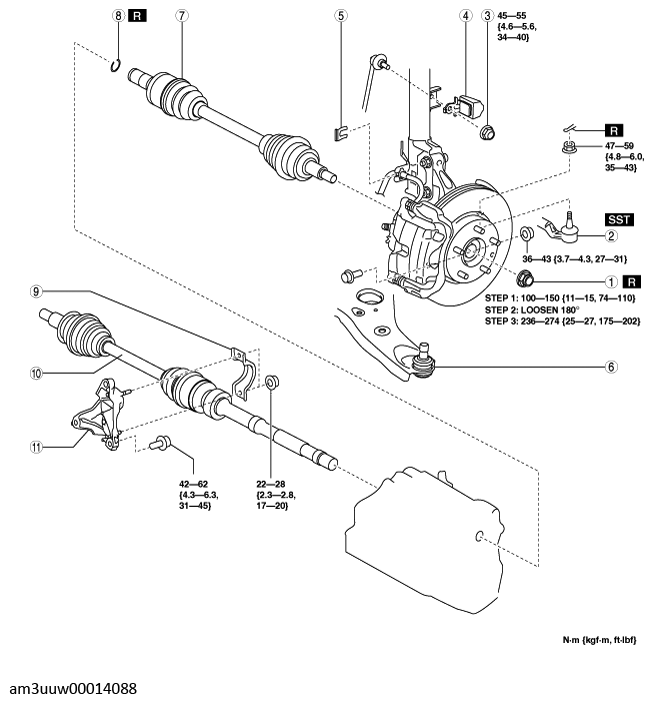

Fig 2: Exploded View Of Front Drive Shaft With Torque Specification
G11450485Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Locknut
(See Locknut Installation Note .)
2 Tie-rod end
(See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
3 Stabilizer control link upper nut
4 Dynamic damper
5 Brake hose clip
6 Front lower arm ball joint
(See FRONT LOWER ARM REMOVAL/INSTALLATION .)
7 Front drive shaft (LH)
(See Front Drive Shaft Removal Note .)
(See Front Drive Shaft (LH) Installation Note .)
8 Front drive shaft clip
(See Front Drive Shaft Clip Installation Note .)
9 Bracket No. 2
(See Bracket, Front Drive Shaft (RH) Installation Note .)
10 Front drive shaft (RH)
(See Front Drive Shaft Removal Note .)
(See Bracket, Front Drive Shaft (RH) Installation Note .)
11 Bracket No. 1
(See Bracket, Front Drive Shaft (RH) Installation Note .)
