Without Steering Warmer System

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
Remove the steering switch. (With steering switch) (See STEERING SWITCH REMOVAL/INSTALLATION .)
Remove the steering wheel side cover. (With steering wheel side cover) (See STEERING WHEEL SIDE COVER REMOVAL/INSTALLATION .)
Remove the steering wheel bezel. (See STEERING WHEEL BEZEL REMOVAL/INSTALLATION .)
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Remove the steering shift switch. (With steering shift switch) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [FW6A-EL] .)
While pressing tabs A in the directions of arrows (1) shown in the figure, press the steering wheel cover in the direction of arrow (2) to detach tabs A from the steering wheel.

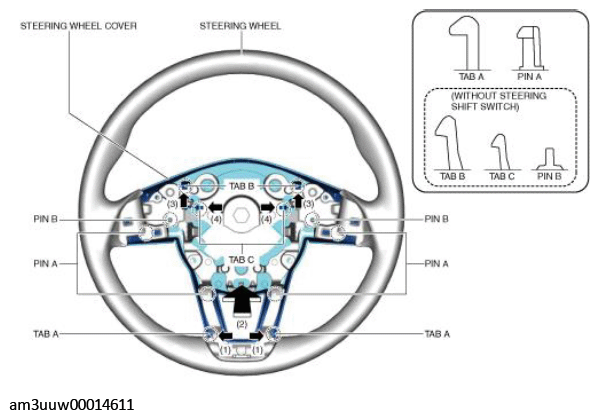

Fig 1: Pressing Steering Wheel Cover
Courtesy of MAZDA MOTORS CORP.
Press the steering wheel cover in the direction of arrow (2) shown in the figure, detach pins A from the steering wheel, and remove the steering wheel cover from the steering wheel. (With steering shift switch)
While pressing tabs B and C in the directions of arrows (3) and (4) shown in the figure, press the steering wheel cover in the direction of arrow (2) to detach tabs B and C, and pins A from the steering wheel. (Without steering shift switch)
Remove the steering wheel cover from the steering wheel while pulling pins B out. (Without steering shift switch)
Install in the reverse order of removal.
