SKYACTIV-G 2.5: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT .)

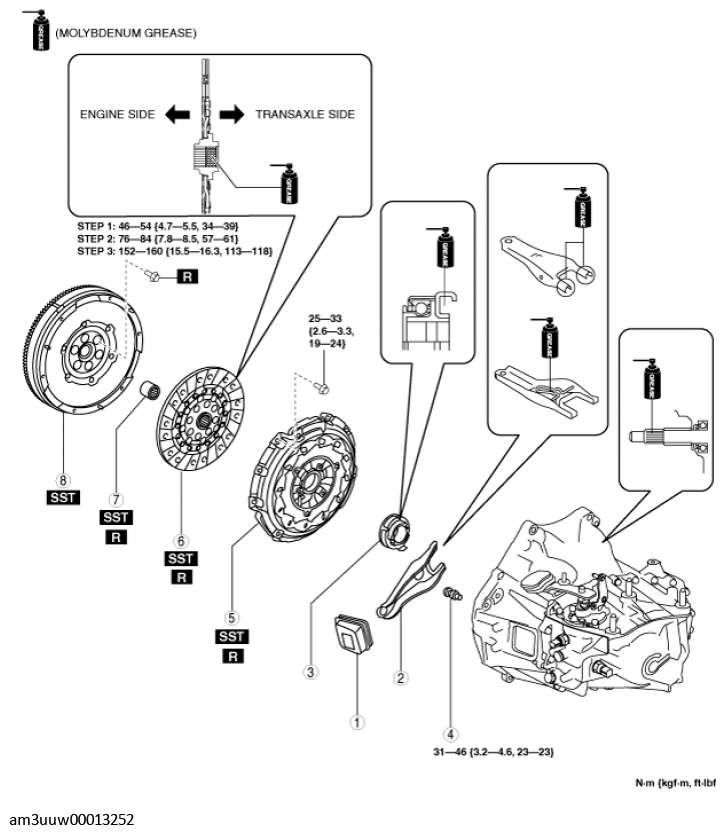

COMPONENT DESCRIPTION
| 1 | Boot |
| 2 | Clutch release fork |
| 3 | Clutch release collar |
| 4 | Pivot pin |
| 5 | Clutch cover (See Clutch cover and clutch disc removal note (SKYACTIV-G 2.5) .) (See Clutch disc and clutch cover installation note (SKYACTIV-G 2.5) .) |
| 6 | Clutch disc (See Clutch cover and clutch disc removal note (SKYACTIV-G 2.5) .) (See Clutch disc and clutch cover installation note (SKYACTIV-G 2.5) .) |
| 7 | Pilot bearing (See Pilot bearing removal note (SKYACTIV-G 2.5) .) (See Pilot bearing installation note (SKYACTIV-G 2.5) .) |
| 8 | Dual-mass flywheel (See Dual-mass flywheel removal note (SKYACTIV-G 2.5) .) (See Dual-mass flywheel installation note (SKYACTIV-G 2.5) .) |
