Clutch Pedal Removal/Installation: Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

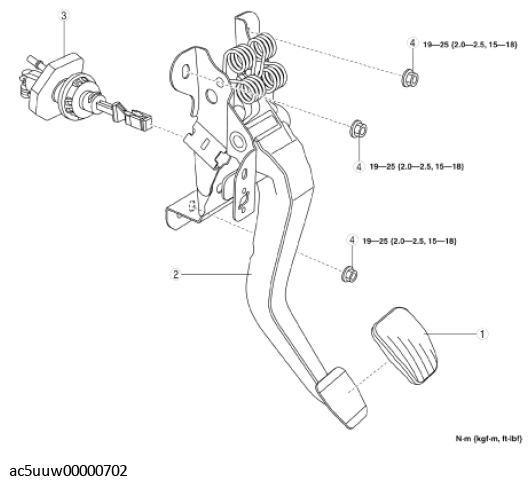

- Install in the order indicated in the table.COMPONENT DESCRIPTION
1 Pedal pad 2 Clutch pedal 3 Clutch master cylinder
(See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION .)4 Nut - Connect the clutch pipe and hose No. 1 to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
- Connect the clutch reserve hose to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
- Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
- Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
- Inspect the clutch pedal height, and verify that the clutch pedal is installed correctly. (See CLUTCH PEDAL INSPECTION .)
- Install a new starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
- Install a new clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
- Install the battery component. (ex: battery, battery tray and PCM component) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Install the air cleaner component. (ex: air cleaner, air hose) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Fully depress the clutch pedal, and verify that the engine starts.
