Clutch Pedal Position Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Disconnect the clutch pedal position switch connector.
Rotate the clutch pedal position switch 45° counterclockwise.

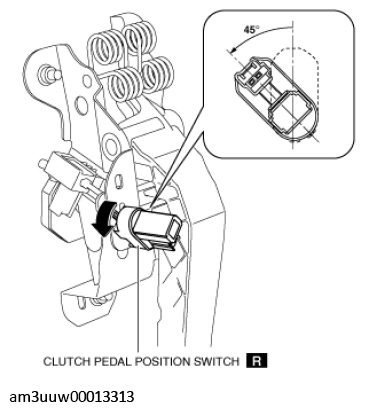

Fig 1: Rotating Clutch Pedal Position Switch Counterclockwise
Courtesy of MAZDA MOTORS CORP.
Remove the clutch pedal position switch from the clutch pedal.

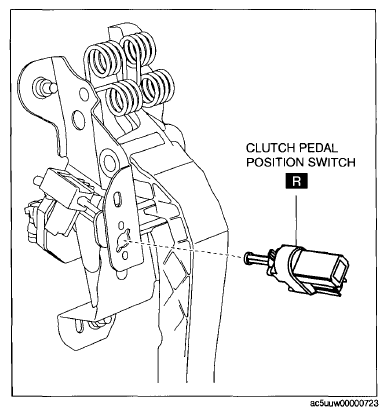

Fig 2: Removing Clutch Pedal Position Switch From Clutch Pedal
Courtesy of MAZDA MOTORS CORP.
Insert a new clutch pedal position switch into the clutch pedal hole until the switch stops.
Rotate the clutch pedal position switch 45° clockwise.

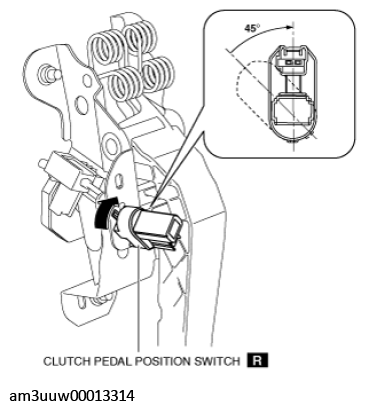

Fig 3: Rotating Clutch Pedal Position Switch Clockwise
Courtesy of MAZDA MOTORS CORP.
Verify that the clutch pedal position switch is locked securely.
Install in the reverse order of removal.
