U.S.A. and CANADA (Hatchback (5HB)): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

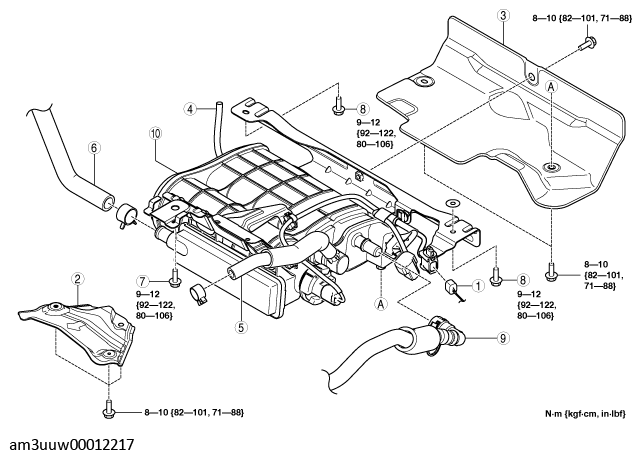

COMPONENT DESCRIPTION
| 1 | Wiring harness connector |
| 2 | Protector |
| 3 | Charcoal canister insulator |
| 4 | Evaporative hose No. 1(body side) (See Evaporative hose No. 1 installation note .) |
| 5 | Evaporative hose No. 2(pipe side) (See Evaporative hose No. 2 installation note .) |
| 6 | Evaporative hose No. 3 (See Evaporative hose No. 3 installation note .) |
| 7 | Charcoal canister bracket No. 1 installation bolt |
| 8 | Charcoal canister bracket No. 2 installation bolt |
| 9 | Quick release connector (See Quick release connector disconnection note .) |
| 10 | Charcoal canister assy (See Charcoal canister assy removal note .) |
