Charcoal canister assy removal note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

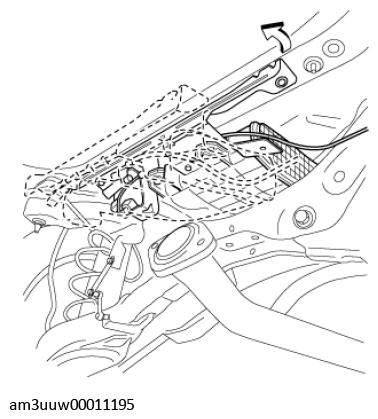

Move the charcoal canister assy as shown in the figure.

Fig 1: Moving Charcoal Canister Assy
Courtesy of MAZDA MOTORS CORP.

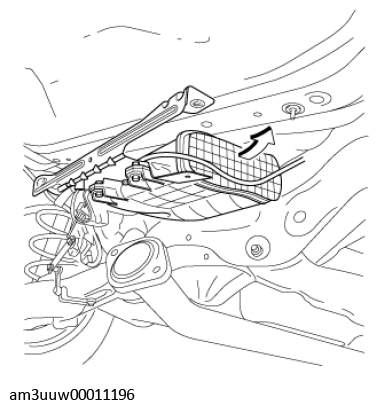

Remove the charcoal canister assy as shown in the figure.

Fig 2: Removing Charcoal Canister Assy
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

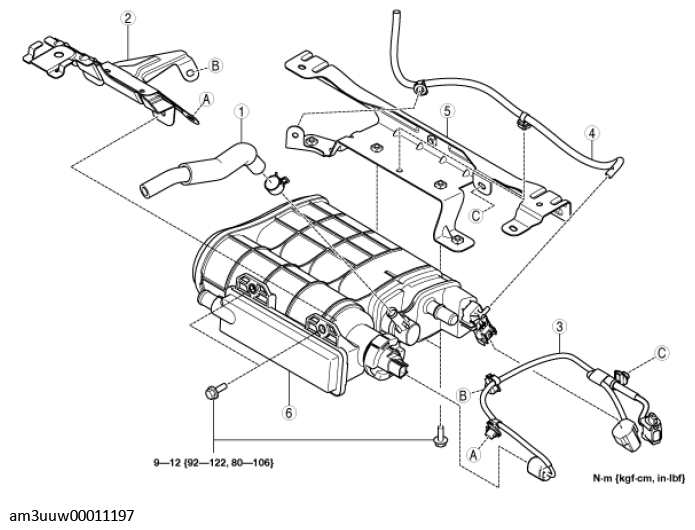

Fig 3: Removing/Installing Charcoal Canister Assy

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose No. 2 (charcoal canister side) (See Evaporative hose No. 2 installation note .)
2	Charcoal canister bracket No. 1
3	Wiring harness
4	Evaporative hose No. 1 (fuel tank pressure sensor side) (See Evaporative hose No. 1 installation note .)
5	Charcoal canister bracket No. 2
6	Charcoal canister
