Tuner And Amp Unit (Tau) Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the nuts.

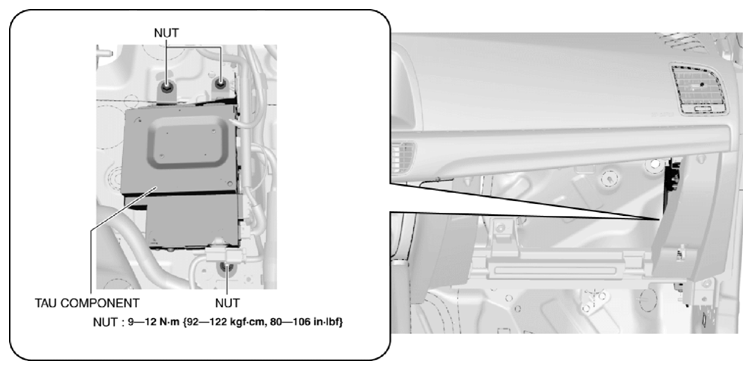

    Fig 1: Removing Nuts
    G10939490Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connectors.

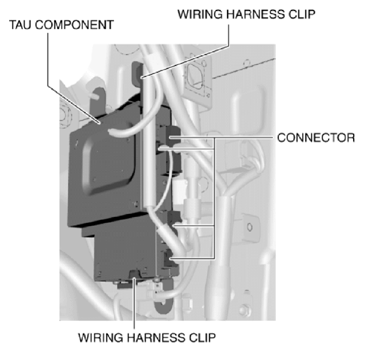

    Fig 2: Disconnecting Connectors
    G10939491Courtesy of MAZDA MOTORS CORP.
  5. Pull out the wiring harness clip.
  6. Remove the tuner and amp unit (TAU) component.
  7. Remove the screws.

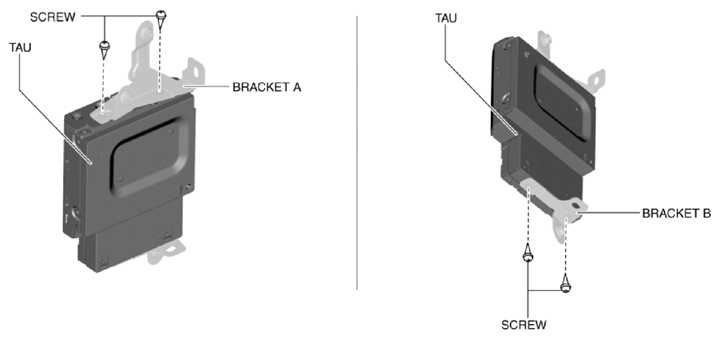

    Fig 3: Removing Screws
    G10939492Courtesy of MAZDA MOTORS CORP.
  8. Remove the brackets A and B.
  9. Install in the reverse order of removal.
