With Bose®

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION )
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

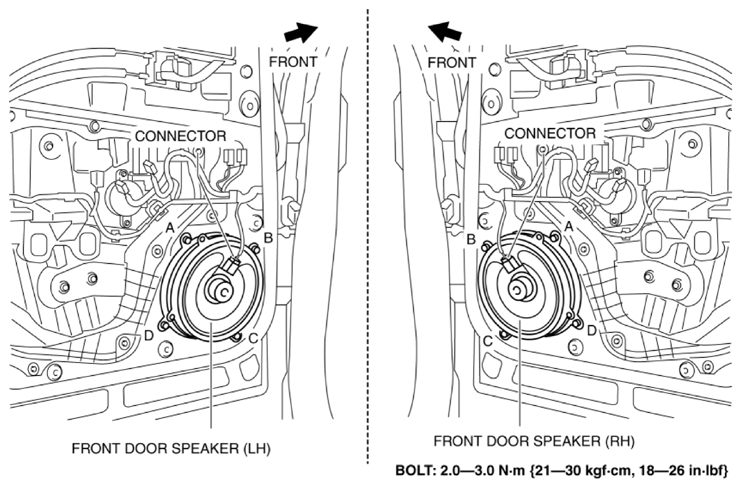

    Fig 1: Disconnecting Connector
    G10939503Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts in alphabetical order.
  5. Pull the front door speaker in the direction of the arrow shown in the figure and remove it while detaching the pins.

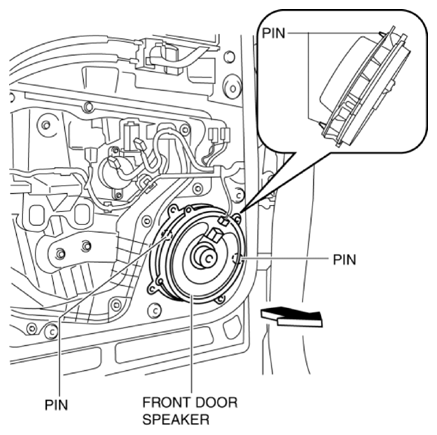

    Fig 2: Pulling Front Door Speaker
    G10939504Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.

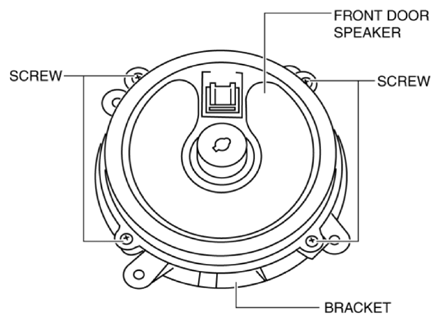

    Fig 3: Removing Screws
    G10939505Courtesy of MAZDA MOTORS CORP.
  7. Remove the front door speaker from the bracket.
  8. Install in the reverse order of removal.
