Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the rear seat back latch (LH), remove the following part:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear center seat belt anchor (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
    3. Rear seat center armrest (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION .)
  2. Remove the following parts:
    1. Head restraint.
    2. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    3. Rear seat back frame (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .)
  3. Remove the screw.

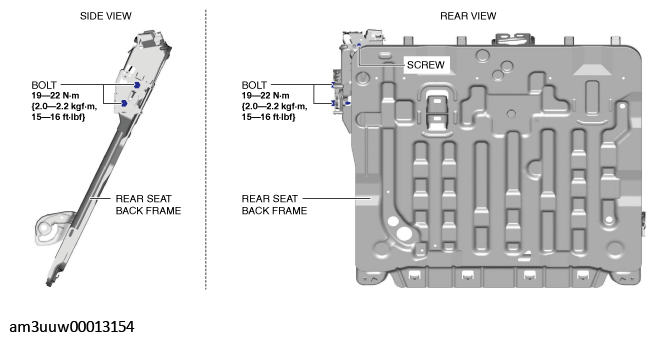

    Fig 1: Rear Seat Back Latch Location (LH)
    G11467560Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Remove the rear seat back latch.

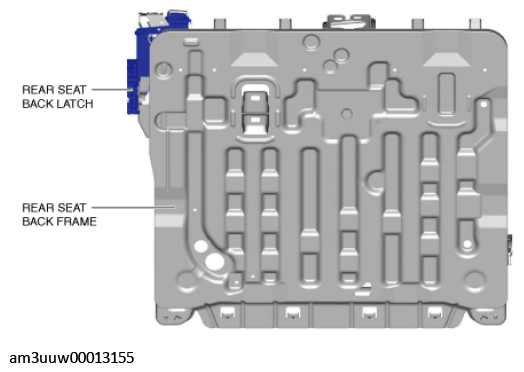

Fig 2: Rear Seat Back Latch And Bolts Location
G11467561Courtesy of MAZDA MOTORS CORP.
