Rear Seat Center Armrest Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Fold the rear seat back (RH).
Remove the screw.

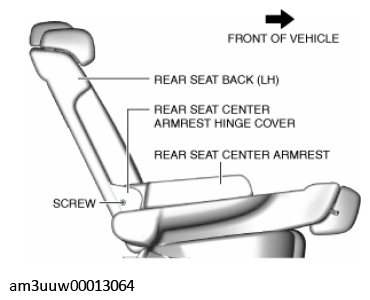

Fig 1: Removing/Installing Rear Seat Center Armrest Parts
Courtesy of MAZDA MOTORS CORP.
Remove the rear center armrest hinge cover in the direction of the arrow shown in the figure.

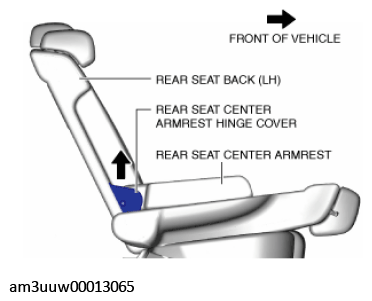

Fig 2: Removing Rear Center Armrest Hinge Cover
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.

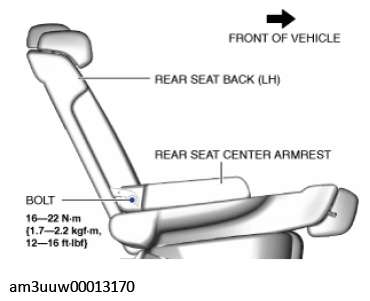

Fig 3: Rear Seat Center Armrest Bolt Location
Courtesy of MAZDA MOTORS CORP.
Partially peel back the trim of the rear seat center armrest hinge and remove the clip from the rear seat center armrest pin in the direction of the arrow shown in the figure.

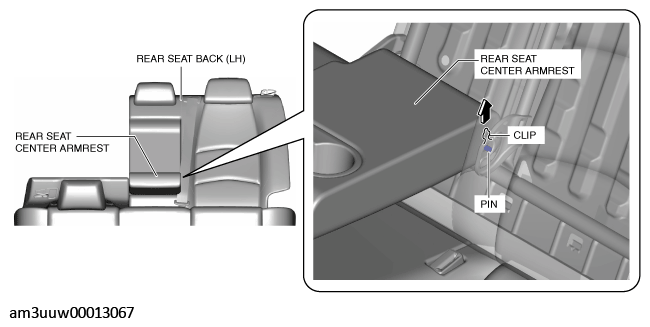

Fig 4: Removing Clip From Rear Seat Center Armrest Pin
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat center armrest by pulling the rear seat center armrest pins from the rear seat center armrest hinges.

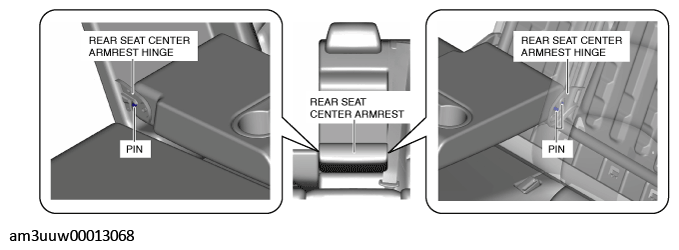

Fig 5: Rear Seat Center Armrest Location
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
