Front Seat Cushion Trim Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front seat cushion trim with the installation hole of the front seat cushion pad, and install the C-rings in the order shown in the figure.
    CAUTION:
    • If a C-ring is damaged while removing or installing the front seat cushion trim and front seat cushion pad, it may not be possible to install the front seat cushion trim and front seat cushion pad normally. When removing or installing the front seat cushion trim and front seat cushion pad, be careful not to damage the C-rings.
    • If a C-ring is damaged, replace it with a new one.
    NOTE:
    • Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

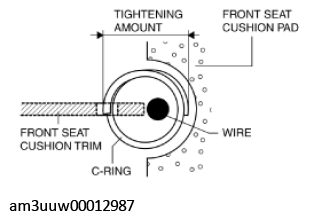

    Fig 1: Aligning Front Seat Cushion Trim With Installation Hole Of Front Seat Cushion Pad
    G11472517Courtesy of MAZDA MOTORS CORP.

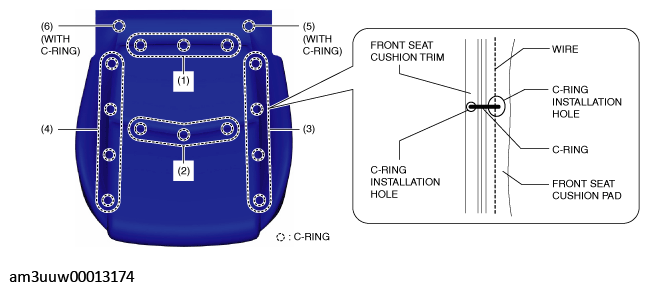

    Fig 2: Front Seat Cushion Pad C-Ring Location
    G11467504Courtesy of MAZDA MOTORS CORP.
  2. Press the front seat cushion pad inward while pulling the front seat cushion trim outward.
    Fig 3: Pulling Front Seat Cushion Trim Outward
    G11426410Courtesy of MAZDA MOTORS CORP.
  3. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame.

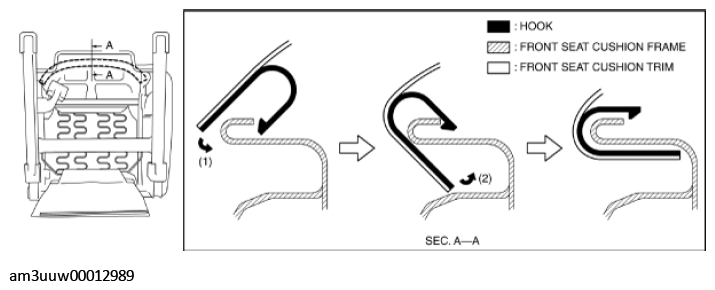

    Fig 4: Installing Front Seat Cushion Trim To Front Seat Cushion Frame
    G11472519Courtesy of MAZDA MOTORS CORP.
  4. Move the front seat cushion trim in the direction of the arrow shown in the figure and ins tall the front seat cushion trim to the front seat cushion frame.

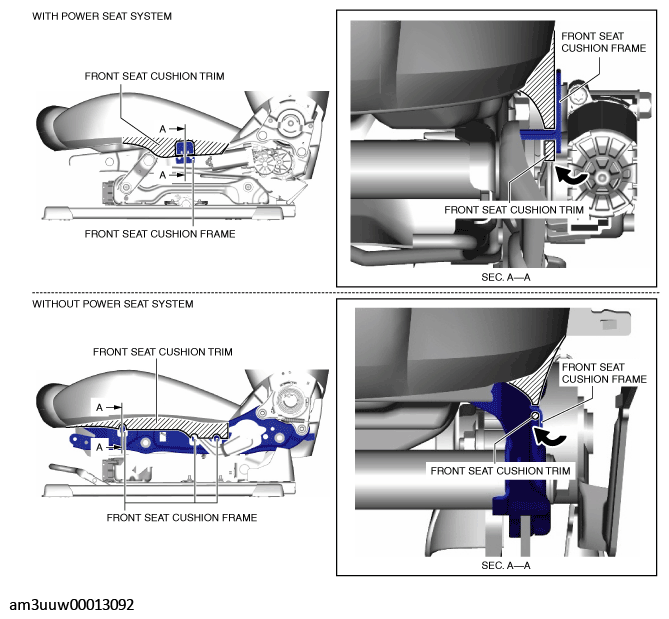

    Fig 5: Moving Front Seat Cushion Trim
    G11467507Courtesy of MAZDA MOTORS CORP.
  5. Move the hook in the direction of the arrow shown in the figure and install the front seat cushion trim to the front seat cushion frame.

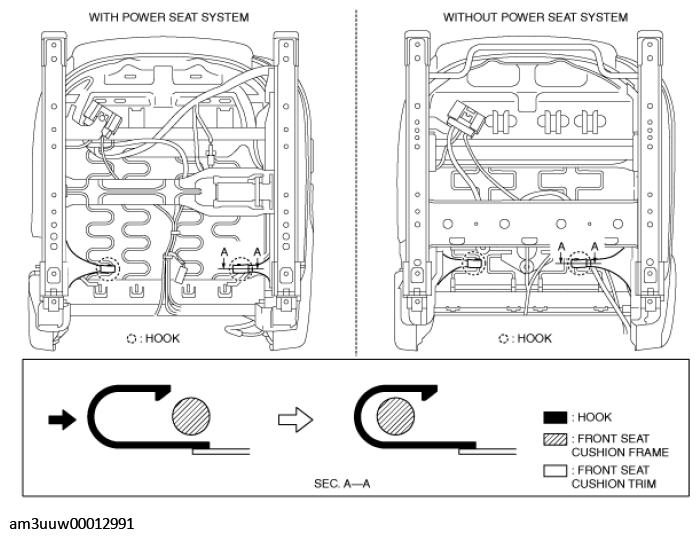

    Fig 6: Installing Front Seat Cushion Trim To Front Seat Cushion Frame
    G11467508Courtesy of MAZDA MOTORS CORP.
  6. Align the front seat cushion trim with the shape of the front seat cushion pad while pressing the front seat cushion pad outward.

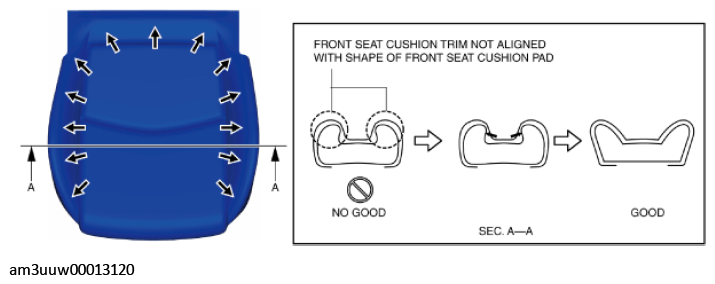

    Fig 7: Aligning Front Seat Cushion Trim With Front Seat Cushion Pad
    G11472522Courtesy of MAZDA MOTORS CORP.
  7. Pull the front seat cushion trim in the direction of the arrow shown in the figure and remove the wrinkles on the front seat cushion trim.
    Fig 8: Removing Wrinkles On Front Seat Cushion Trim
    G11472523Courtesy of MAZDA MOTORS CORP.
  8. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame. (With power seat system)
    Fig 9: Installing Front Seat Cushion Trim To Front Seat Cushion Frame (With Power Seat System)
    G11467489Courtesy of MAZDA MOTORS CORP.
  9. Install the C-rings. (Without power seat system)
    CAUTION:
    • If a C-ring is damaged while removing or installing the front seat cushion trim and front seat cushion frame, it may not be possible to install the front seat cushion trim and front seat cushion frame normally. When removing or installing the front seat cushion trim and front seat cushion frame, be careful not to damage the C-rings.
    • If a C-ring is damaged, replace it with a new one.
  10. Pull the front seat cushion trim in the direction of the arrow shown in the figure and remove the wrinkles on the front seat cushion trim.
    Fig 10: Removing Wrinkles On Front Seat Cushion Trim
    G11426418Courtesy of MAZDA MOTORS CORP.
  11. Install the fasteners and install the front seat cushion trim to the front seat cushion frame. (With power seat system)

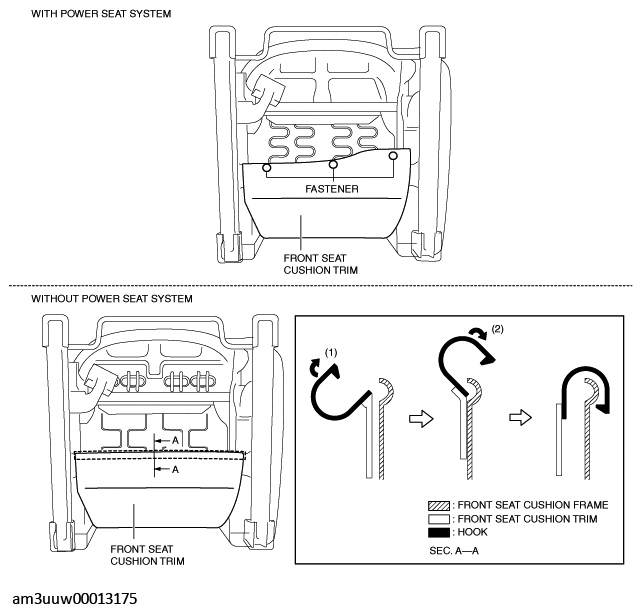

    Fig 11: Installing Front Seat Cushion Trim To Front Seat Cushion Frame (With Power Seat System)
    G11467513Courtesy of MAZDA MOTORS CORP.
  12. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame. (Without power seat system)
  13. Connect the connectors shown in the figure.
    Fig 12: Moving Front Seat Cushion Frame (With Power Seat System)
    G11467497Courtesy of MAZDA MOTORS CORP.
  14. Install the wiring harness clip.
  15. Install the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
  16. Install the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  17. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
