Front Seat Cushion Frame/Adjuster Unit Removal/Installation: Passenger-side

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Front seat back component (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    4. Front seat cushion trim (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
    5. Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION .)
    6. Seat warmer control unit (With seat warmer system) (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .)
  3. Remove the parts shown in the figure.

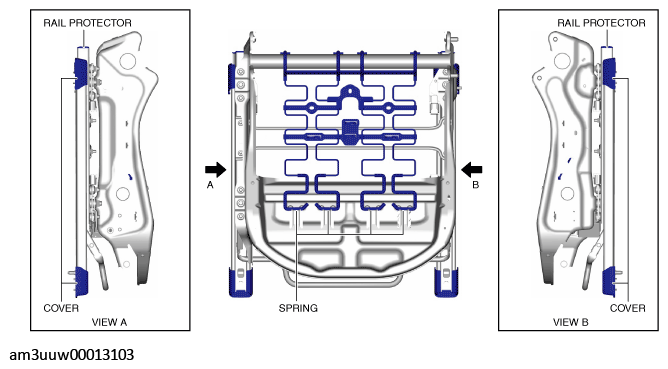

    Fig 1: Removing Front Seat Side Cover (Passenger-Side)
    G11467494Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
