Front Seat Back Trim Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order shown in the figure.
    CAUTION:
    • If a C-ring is damaged while removing or installing the front seat back trim and front seat back pad, it may not be possible to install the front seat back trim and front seat back pad normally. When removing or installing the front seat back trim and front seat back pad, be careful not to damage the C-rings.
    • If a C-ring is damaged, replace it with a new one.
    NOTE:
    • Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
    Fig 1: Aligning Front Seat Back Trim With Installation Hole Of Front Seat Back Pad
    G11467479Courtesy of MAZDA MOTORS CORP.

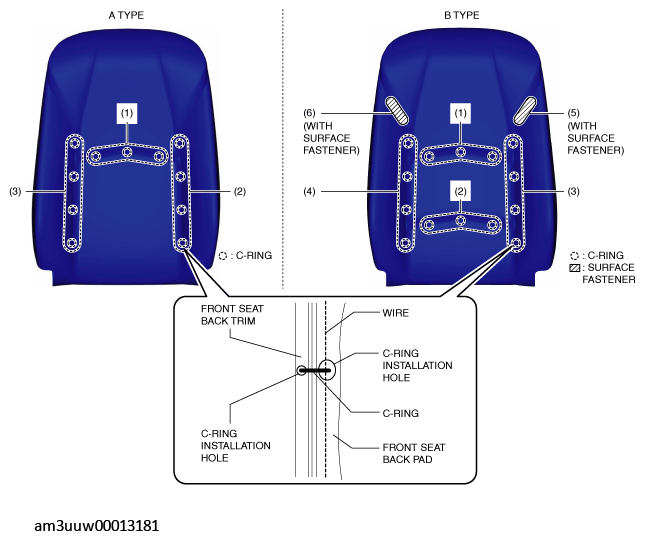

    Fig 2: Front Seat Back Trim Surface Fasteners Location
    G11467480Courtesy of MAZDA MOTORS CORP.
  2. While covering the front seat back trim with the front seat back pad, install the surface fasteners in the order shown in the figure. (With surface fastener)
  3. Press the front seat back pad inward while pulling the front seat back trim outward.
    Fig 3: Pulling Front Seat Back Trim Outward
    G11467481Courtesy of MAZDA MOTORS CORP.
  4. Install the front seat back trim and the front seat back pad as a single unit to the front seat back frame.

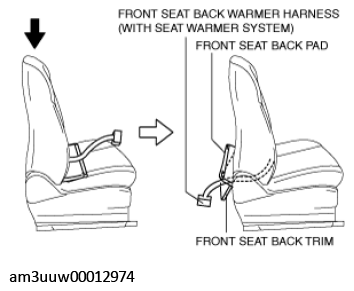

    Fig 4: Installing Front Seat Back Trim And Front Seat Back Pad
    G11467482Courtesy of MAZDA MOTORS CORP.
  5. Pull out the front seat back pad, front seat back trim, and front seat back warmer wiring harness (with seat warmer system) rearward of the front seat.
  6. Install the side air bag module securing belt to the stud bolt of the front seat back frame in the order of (1) and (2) shown in the figure.

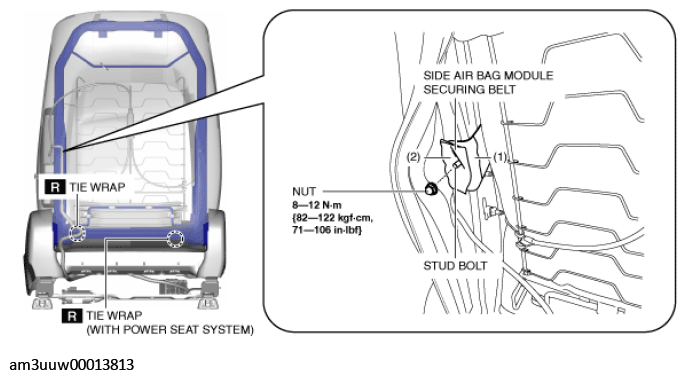

    Fig 5: Installing Side Air Bag Module To Front Seat Back Frame
    G11467483Courtesy of MAZDA MOTORS CORP.
  7. Install the nut and washer.
  8. Install the tie wraps.
  9. Install the pole guides to the front seat back frame.

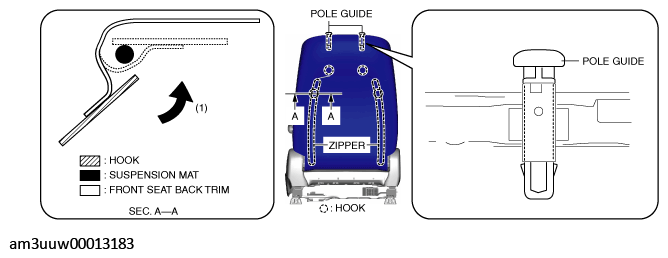

    Fig 6: Installing Pole Guides To Front Seat Back Frame
    G11467484Courtesy of MAZDA MOTORS CORP.
  10. Move the hook in the direction of the arrow shown in the figure and install the front seat back trim to the suspension mat.
  11. Fasten the zippers.
  12. Install the clip in the direction of the arrow (1) shown in the figure and install the lumbar support lever in the direction of the arrow (2). (With lumbar support)

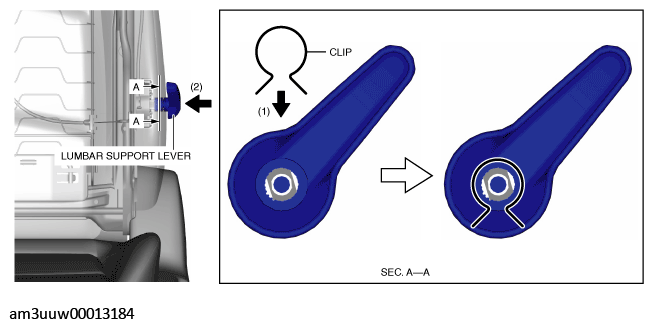

    Fig 7: Installing Lumbar Support Lever (With Lumbar Support)
    G11467485Courtesy of MAZDA MOTORS CORP.
  13. Align the front seat back trim with the shape of the front seat back pad while pressing the front seat back pad outward.

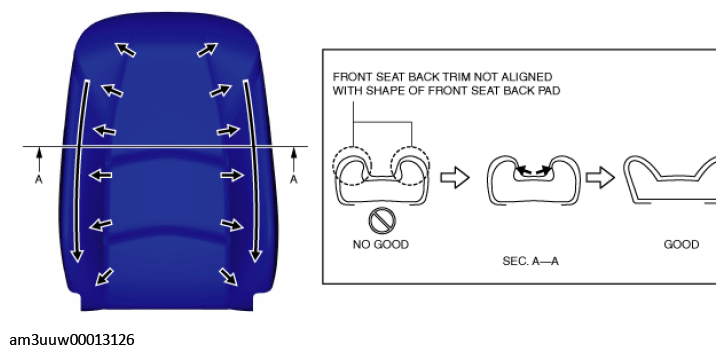

    Fig 8: Aligning Front Seat Back Trim With Front Seat Back Pad
    G11472501Courtesy of MAZDA MOTORS CORP.
  14. Pull the front seat back trim in the direction of the arrow shown in the figure and remove the wrinkles on the front seat back trim.
    Fig 9: Removing Wrinkles On Front Seat Back Trim
    G11472502Courtesy of MAZDA MOTORS CORP.
  15. Move hook A in the direction of the arrow shown in the figure and install it to hook B.

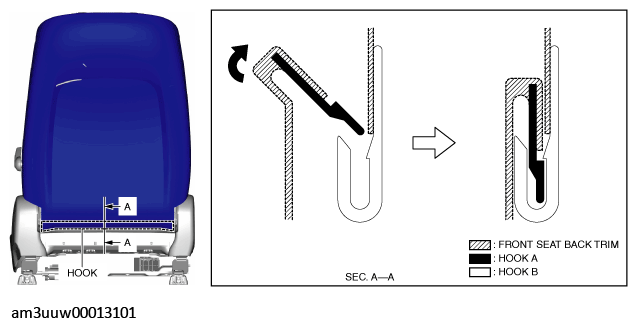

    Fig 10: Moving Front Seat Back Trim Hook A
    G11467488Courtesy of MAZDA MOTORS CORP.
  16. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame. (With power seat system)

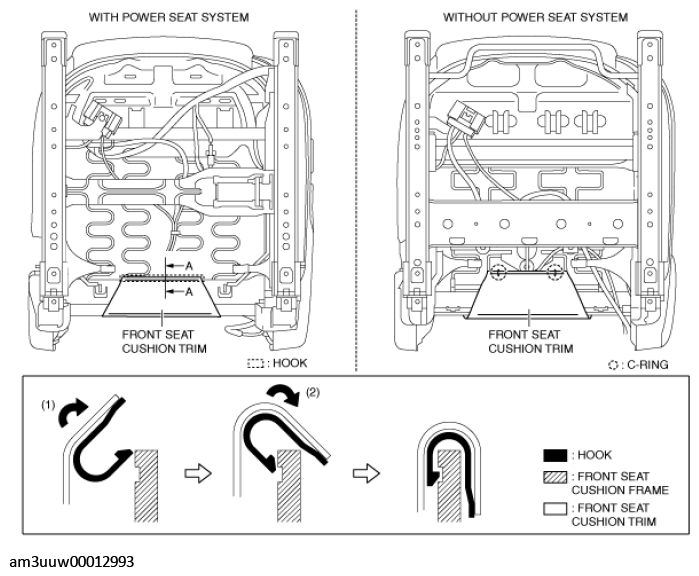

    Fig 11: Installing Front Seat Cushion Trim To Front Seat Cushion Frame (With Power Seat System)
    G11467489Courtesy of MAZDA MOTORS CORP.
  17. Install the C-rings. (Without power seat system)
    CAUTION:
    • If a C-ring is damaged while removing or installing the front seat cushion trim and front seat cushion frame, it may not be possible to install the front seat cushion trim and front seat cushion frame normally. When removing or installing the front seat cushion trim and front seat cushion frame, be careful not to damage the C-rings.
    • If a C-ring is damaged, replace it with a new one.
  18. Connect the connectors shown in the figure.

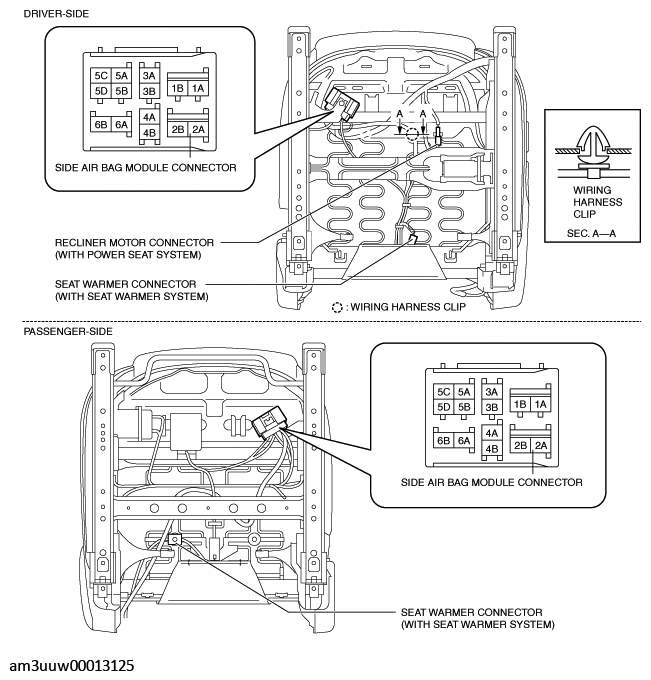

    Fig 12: Side Air Bag Module Connector Module Location
    G11467471Courtesy of MAZDA MOTORS CORP.
  19. Install the wiring harness clip.
  20. Install the fasteners and install the front seat cushion trim to the front seat cushion frame. (With power seat system)

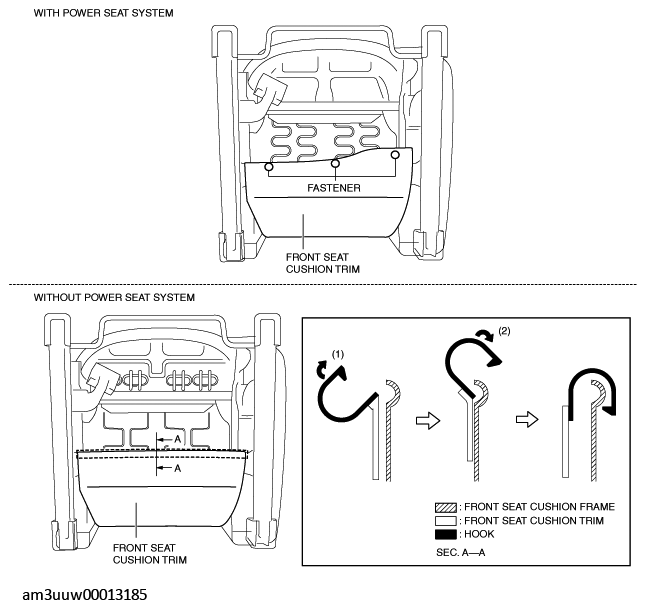

    Fig 13: Installing Front Seat Cushion Trim To Front Seat Cushion Frame
    G11467491Courtesy of MAZDA MOTORS CORP.
  21. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame. (Without power seat system)
  22. Install the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  23. Install the head restraint.
  24. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
