Wheel Hub Component Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
  1. Perform the following procedure for vehicles with the electric parking brake.
    1. Switch the ignition ON (engine off).
    2. Release the electric parking brake.
    3. Switch the ignition off.
    4. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  3. When working on the left side of the vehicle, remove the auto leveling sensor from the rear lower arm. (With headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
  4. Disconnect the rear ABS wheel-speed sensor wiring harness installed to the wheel hub and set it aside. (Without electric parking brake)

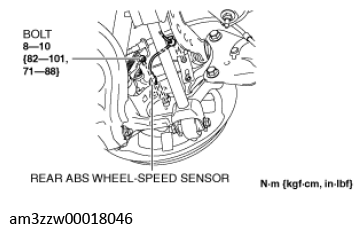

    Fig 1: Rear ABS Wheel-Speed Sensor With Mounting Bolts
    G11450511Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the rear ABS wheel-speed sensor wiring harness and the electric parking brake motor gear unit connector and set it aside so that it does not interfere with the servicing. (With electric parking brake)

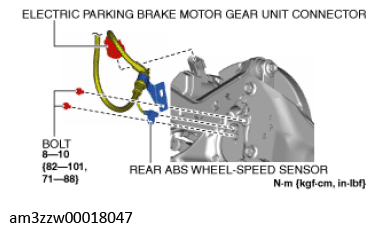

    Fig 2: Disconnecting Rear ABS Wheel-Speed Sensor Wiring Harness And Electric Parking Brake Motor Gear Unit Connector
    G11450512Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal. (See SUSPENSION LINKS INSTALLATION NOTE .)
  8. When the hub support, hub support bushing (front), or hub support bushing (rear) is replaced, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)
  9. When the auto leveling sensor link is disconnected, perform the headlight auto leveling system initial setting. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)

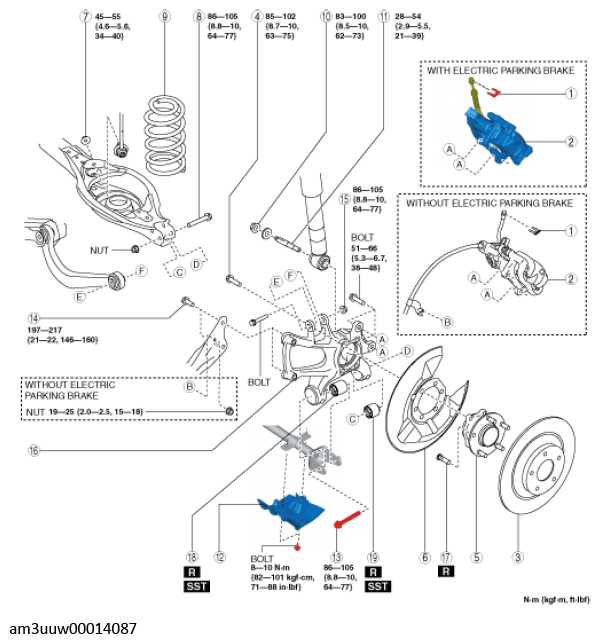

Fig 3: Exploded View Of Wheel Hub With Torque Specification
G11450513Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Brake hose clip
2 Brake caliper component
(See Brake Caliper Component Removal Note .)
3 Disc plate
4 Bolt (wheel hub)
5 Wheel hub
6 Dust cover
7 Rear stabilizer control link lower nut
8 Rear lower arm outer bolt
(See Rear Lower Arm Outer Bolt Removal Note .)
9 Rear coil spring
(See REAR COIL SPRING REMOVAL/INSTALLATION .)
10 Rear shock absorber lower nut
(See REAR SHOCK ABSORBER REMOVAL/INSTALLATION .)
11 Stud bolt
(See REAR SHOCK ABSORBER REMOVAL/INSTALLATION .)
12 Protector (With protector)
(See REAR LATERAL LINK REMOVAL/INSTALLATION .)
13 Rear lateral link outer nut
(See REAR LATERAL LINK REMOVAL/INSTALLATION .)
14 Rear trailing link installation bolt
(See REAR TRAILING LINK REMOVAL/INSTALLATION .)
15 Rear upper arm outer nut
(See REAR UPPER ARM REMOVAL/INSTALLATION .)
16 Hub support
17 Wheel hub bolt
(See Wheel Hub Bolt Removal Note .)
(See Wheel Hub Bolt Installation Note .)
18 Hub support bushing (front)
(See Hub Support Bushing (Front) Removal Note .)
(See Hub Support Bushing (Front) Installation Note .)
19 Hub support bushing (rear)
(See Hub Support Bushing (Rear) Removal Note .)
(See Hub Support Bushing (Rear) Installation Note .)
