Hub Support Bushing (Front) Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

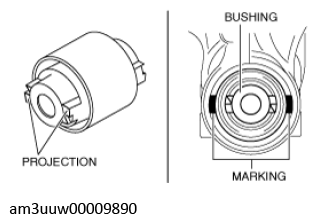

Fig 1: Aligning Projection Of Bushing With Hub Support Marking
Courtesy of MAZDA MOTORS CORP.
Install a new hub support bushing (front) using the SSTs.

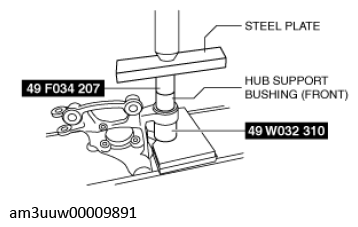

Fig 2: Installing Hub Support Bushing (Front) Using SST

Courtesy of MAZDA MOTORS CORP.
