Rear Axle Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

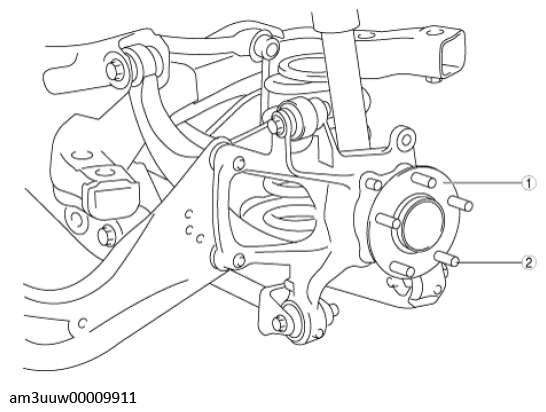

Fig 1: Rear Axle Wheel Hub Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Wheel hub component (See WHEEL HUB COMPONENT INSPECTION .) (See WHEEL HUB COMPONENT REMOVAL/INSTALLATION .)
2	Wheel hub bolt (See REAR WHEEL HUB BOLT REPLACEMENT .)
