Indicator Removal/Installation (With Electric Parking Brake): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
2. Selector lever knob (See Selector Lever Removal/Installation .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.

Fig 1: Shift Panel And Boots Securing Parts
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

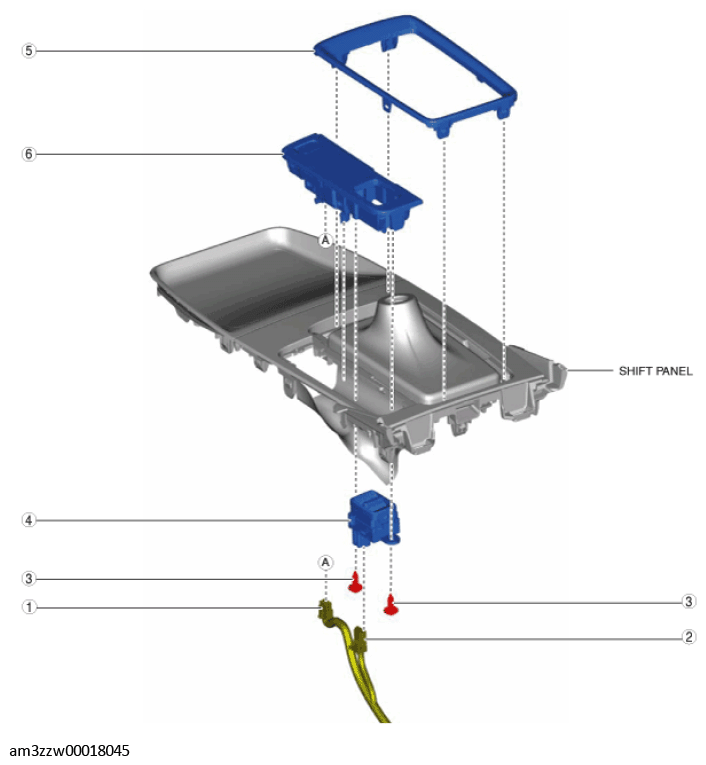

Fig 2: Removing Indicator Connector, Screw, Indicator Panel, Indicator, Drive Selection Switch And Connector

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Indicator connector
2	Drive selection switch connector
3	Screw
4	Drive selection switch
5	Indicator panel
6	Indicator (See Indicator Removal/Installation (With Electric Parking Brake) .)
