Section 124 (Automatic Transaxle Shift Mechanism)
>>
Automatic Transaxle Shift Mechanism Removal/Installation
>>
Indicator Removal/Installation (With Electric Parking Brake)
>>
Indicator Removal Note (With Electric Parking Brake)
Indicator Removal Note (With Electric Parking Brake)
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Detach tabs shown in the figure and remove the indicator.

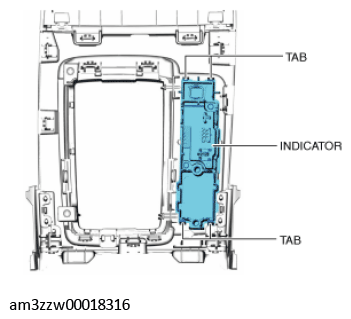

Fig 1: Indicator And Tabs
Courtesy of MAZDA MOTORS CORP.
