Rear Bumper Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

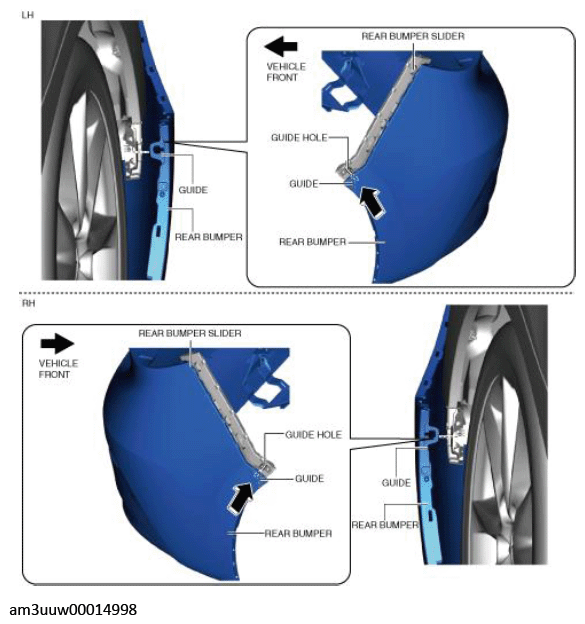

Move the rear bumper guide in the direction of the arrow shown in the figure and insert it into the rear bumper slider guide hole.

Fig 1: Moving Rear Bumper Guide

Courtesy of MAZDA MOTORS CORP.
