Rear Bumper Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Sedan (4SD)

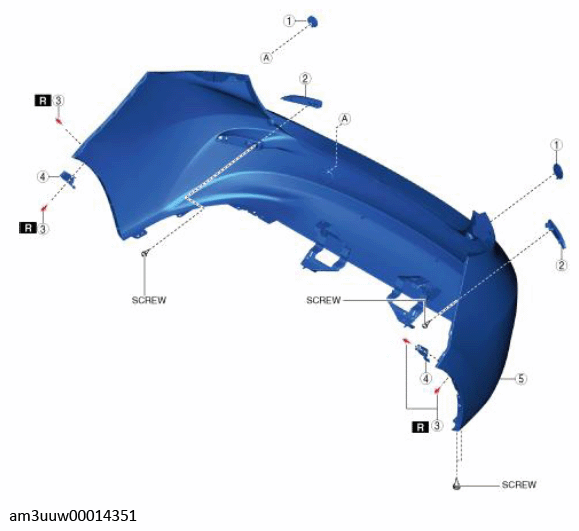

Fig 1: Disassembling/Assembling Rear Bumper Parts (Sedan (4SD))

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Towing hook cover
2	Rear reflector
3	Rivet (See Rivet Removal Note .)
4	Bracket
5	Rear bumper face

Hatchback (5HB)

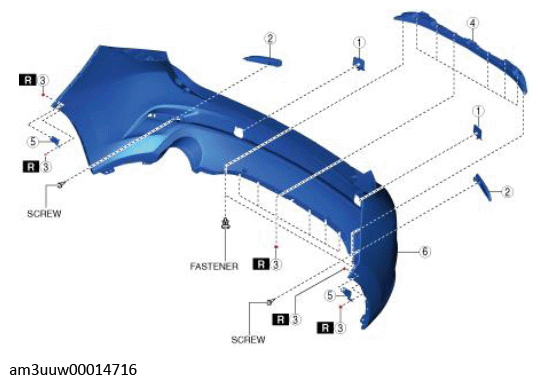

Fig 2: Disassembling/Assembling Rear Bumper Parts (Hatchback (5HB))

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Towing hook cover
2	Rear reflector
3	Rivet (See Rivet Removal Note .)
4	Bumper guard
5	Bracket
6	Rear bumper face

Assemble in the reverse order of disassembly.
