Height Difference Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the height difference between the hood and the body is within the specification.

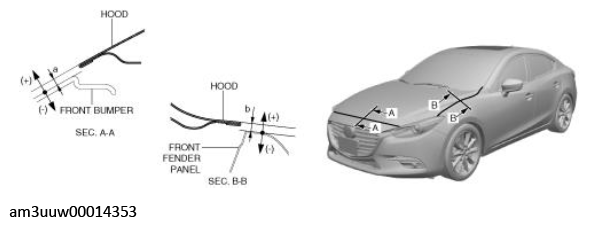

Fig 1: Adjusting Height Difference Between Hood And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance

a: -2.0-2.0 mm {-0.078-0.078 in}

b: -1.4-0.6 mm {-0.05-0.02 in}
- If the measured value exceeds the standard clearance, adjust the hood using the following procedure.
Turn the stop rubber to adjust the height of the hood.

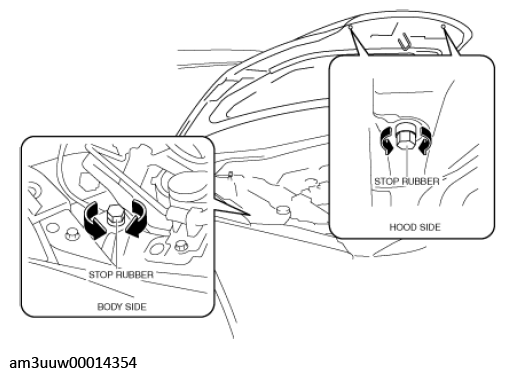

Fig 2: Turning Hood Stop Rubber

Courtesy of MAZDA MOTORS CORP.
