Gap Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the gap between the hood and the body is within the specification.

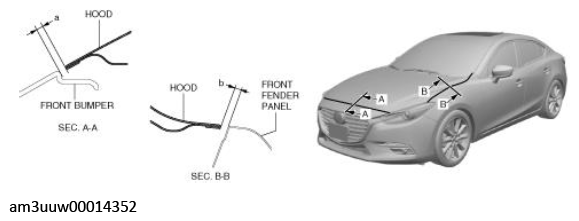

Fig 1: Adjusting Gap Between Hood And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance

a: 1.7-5.3 mm {0.07-0.20 in}

b: 2.5-4.5 mm {0.10-0.17 in}
- If the measured value exceeds the standard clearance, adjust the hood using the following procedure.
Loosen the bolts and adjust the hood.

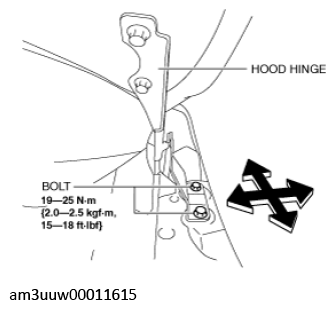

Fig 2: Adjusting Hood
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts. (See HOOD REMOVAL/INSTALLATION .)
