Sedan (4SD)
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
- Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
- Disconnect the connector.

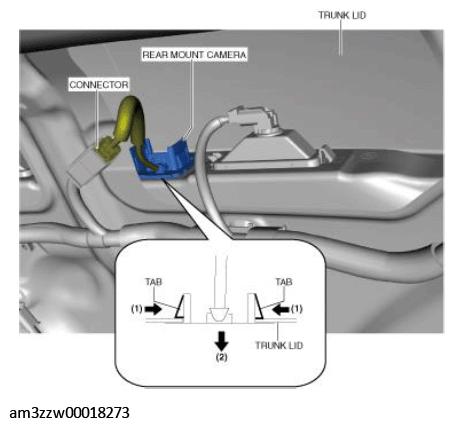

- Press the rear mount camera tabs in the direction of arrows (1) shown in the figure, press the rear mount camera in the direction of arrow (2) shown in the figure, and disengage the rear mount camera tabs from the trunk lid.
- Remove the rear mount camera.
- Install in the reverse order of removal.
