Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    5. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
  3. Press the rear mount camera tabs in the direction of the arrows (1) shown in the figure, press the rear mount camera in the direction of the arrow (2) shown in the figure, and disengage the rear mount camera tabs from the liftgate.

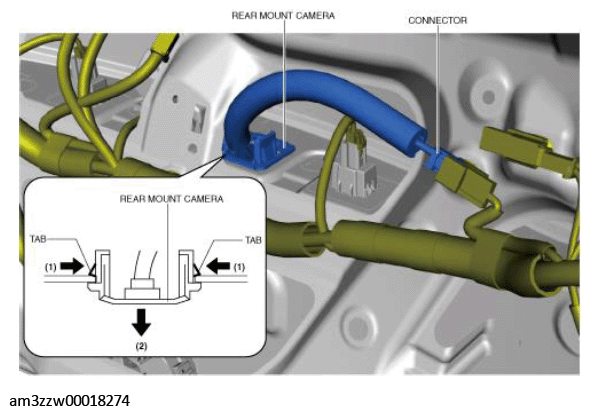

    Fig 1: Pressing Rear Mount Camera And Connector
    G11448822Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear mount camera.
  5. Install in the reverse order of removal.
