Without Bose®

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the procedure is performed while holding the front door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
    Fig 1: Front Door Speaker Connector Location
    G11448794Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Pull the front door speaker in the direction of the arrow shown in the figure and remove it while detaching the pins.

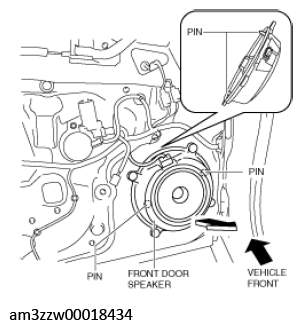

    Fig 2: Pulling Front Door Speaker
    G11448795Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
