With Bose®

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
    Fig 1: Locating Front Door Speaker
    G11448796Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Pull the front door speaker in the direction of the arrow shown in the figure and remove it while detaching the pins.

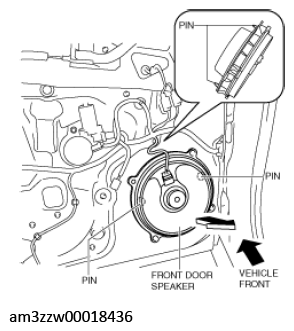

    Fig 2: Pulling Front Door Speaker
    G11448797Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
    Fig 3: Locating Front Door Speaker Screw
    G09077654Courtesy of MAZDA MOTORS CORP.
  7. Remove the front door speaker from the bracket.
  8. Install in the reverse order of removal.
