Without Center Display
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)

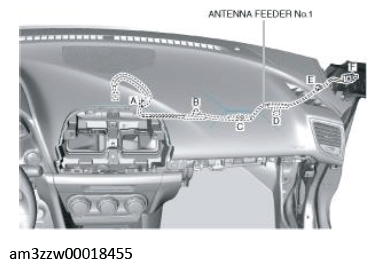

- Remove the clips A, B, C, D, E and F.
- Remove the antenna feeder No. 1.
- Install in the reverse order of removal.
