Without Center Display

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
Disconnect antenna feeder No. 2.

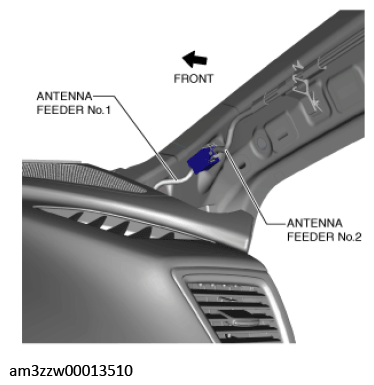

Fig 1: Locating Antenna Feeder No. 2
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between antenna feeder No. 1 terminals is as indicated in the table.

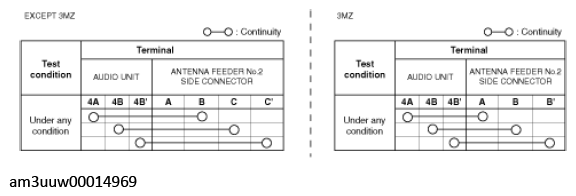

Fig 2: Antenna Feeder No. 1 Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

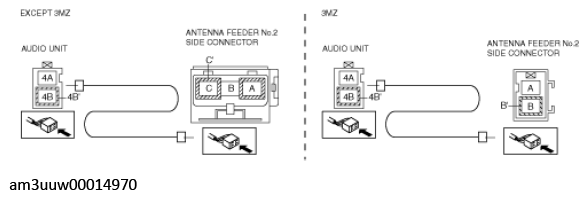

Fig 3: Checking Continuity Between Antenna Feeder No. 1 Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace antenna feeder No. 1.
