Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Move the tire house trim in the direction of the arrow shown in the figure and remove the hooks from the C-pillar trim.

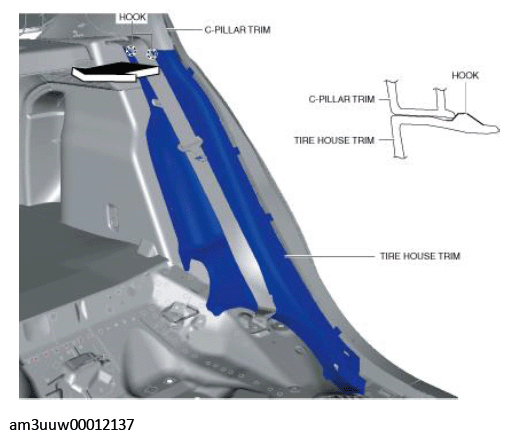

    Fig 1: Moving Tire House Trim - Hatchback (5HB)
    G11449394Courtesy of MAZDA MOTORS CORP.
  4. Move the tire house trim in the order of the arrows (1) and (2) shown in the figure while setting the rear seat back aside, and remove the clips from the body.

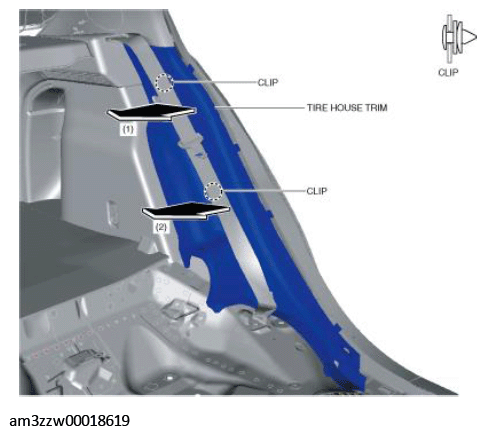

    Fig 2: Removing Clips From Body
    G11449395Courtesy of MAZDA MOTORS CORP.
  5. Remove the tire house trim.
  6. Install in the reverse order of removal.
