Lower Panel Removal/Installation: Passenger-side: Removal

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the bolts.

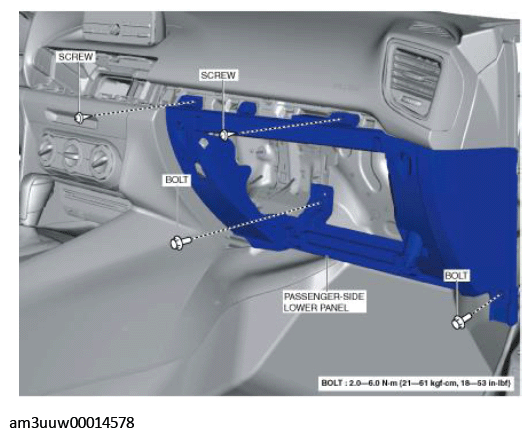

    Fig 1: Removing Passenger-Side Lower Panel Bolts
    G11449312Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Partially peel back the seaming welt.
  6. Move the passenger-side lower panel in the order of the arrows (1), (2), (3), and (4) shown in the figure, and remove it while detaching the clips, tab, hook, pins, and guide.

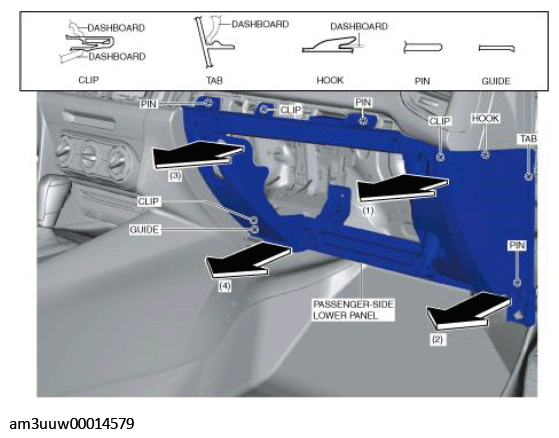

Fig 2: Removing Passenger-Side Lower Panel
G11449313Courtesy of MAZDA MOTORS CORP.
