Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

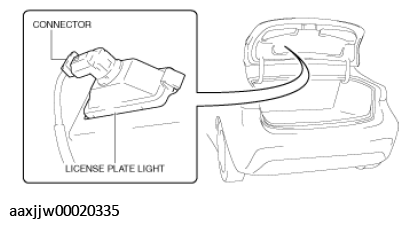

    Fig 1: Locating License Plate Light Connector
    G11449558Courtesy of MAZDA MOTORS CORP.
  5. While pressing the license plate light hook in the direction of arrow (1) shown in the figure, press the license plate light in the direction of arrow (2), and detach the license plate light hook from the trunk lid.
    Fig 2: Pressing License Plate Light Hook
    G11449559Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the license plate light from the trunk lid, the license plate light could fall off and be damaged. Remove the license plate light from the trunk lid while holding the license plate light on the lens side with a hand.
  6. Remove the license plate light.
  7. Install in the reverse order of removal.
