Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
  4. Remove the clip.

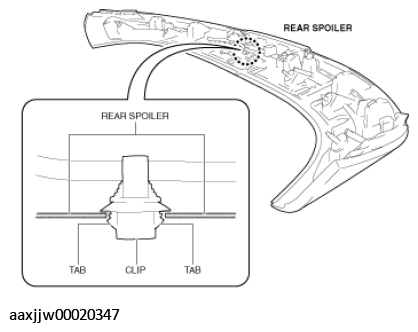

    Fig 1: Locating Rear Spoiler
    G11449551Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.

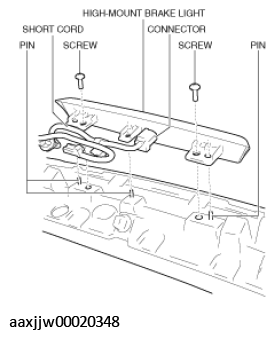

    Fig 2: Removing High Mount Brake Light Screw
    G11449552Courtesy of MAZDA MOTORS CORP.
  6. Remove the short cord.
  7. Remove the screws.
  8. Remove the high-mount brake light.
  9. Install in the reverse order of removal.
