Passenger-Side Air Bag Module Installation [Standard Deployment Control System]

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the passenger-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the passenger-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

Install guide A to the dashboard (1).

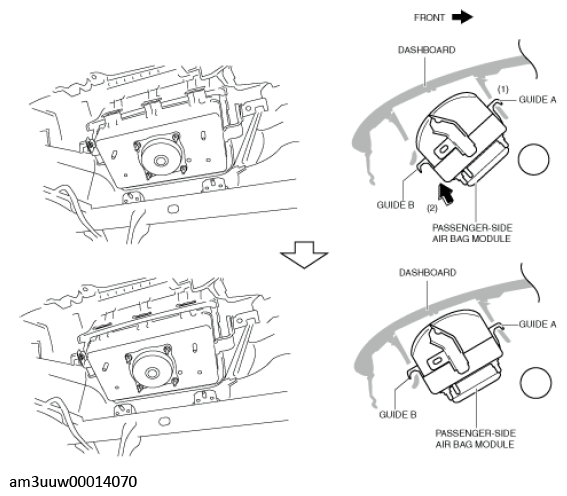

Fig 1: Locating Passenger-Side Air Bag Module Guides
Courtesy of MAZDA MOTORS CORP.
Press the passenger-side air bag module in the direction of the arrow shown in the figure and attach guides B (2).
Install the screws.

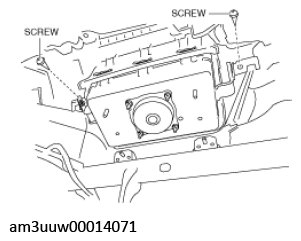

Fig 2: Installing Passenger-Side Air Bag Module Screws
Courtesy of MAZDA MOTORS CORP.
Install the brackets.

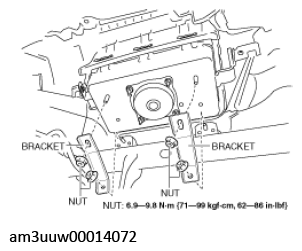

Fig 3: Installing Passenger-Side Air Bag Module Brackets
Courtesy of MAZDA MOTORS CORP.
Install the nuts.
Install the fastener.

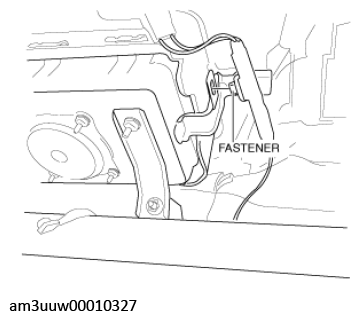

Fig 4: Locating Passenger-Side Air Bag Module Fastener
Courtesy of MAZDA MOTORS CORP.
Connect the passenger-side air bag module connector.

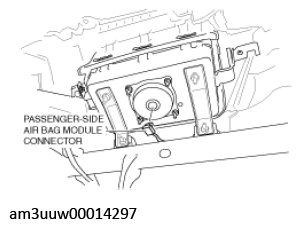

Fig 5: Locating Passenger-Side Air Bag Module Connector
Courtesy of MAZDA MOTORS CORP.
Install the cap with the arrow pointing toward the front.

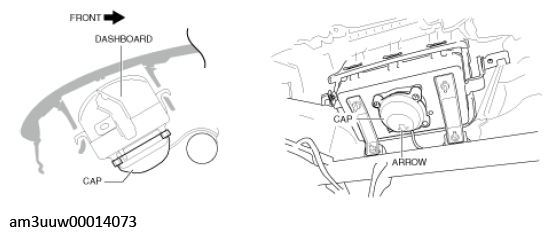

Fig 6: Locating Passenger-Side Air Bag Module Cap
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
2. Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
5. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
6. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)] .)
