Vehicle Exterior

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

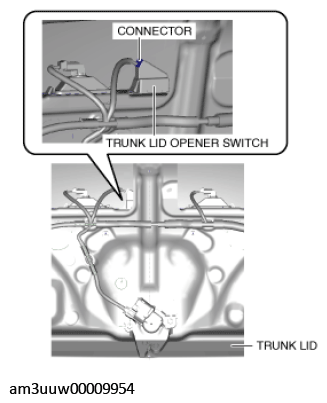

    Fig 1: Trunk Lid Opener Switch Connector Location
    G11467849Courtesy of MAZDA MOTORS CORP.
  5. While pressing the trunk lid opener switch tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the trunk lid opener switch tab from the trunk lid.

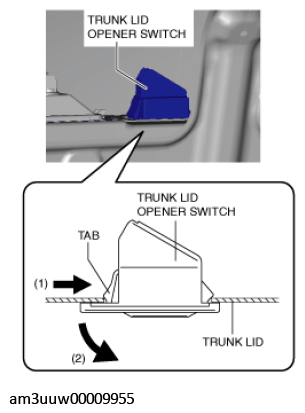

    Fig 2: Detaching Trunk Lid Opener Switch Tab From Trunk Lid
    G11467850Courtesy of MAZDA MOTORS CORP.
  6. Remove the trunk lid opener switch from the trunk lid.
  7. Install in the reverse order of removal.
