Front Door Latch Switch Inspection: RH

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    5. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Verify that the continuity is as indicated in the table.
    Fig 1: Front Door Latch Switch Continuity Reference Chart (RH)
    G11273475Courtesy of MAZDA MOTORS CORP.
    Fig 2: Inspecting Door Latch Switch
    G11467669Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the front door latch and lock actuator.
      NOTE:
      • When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

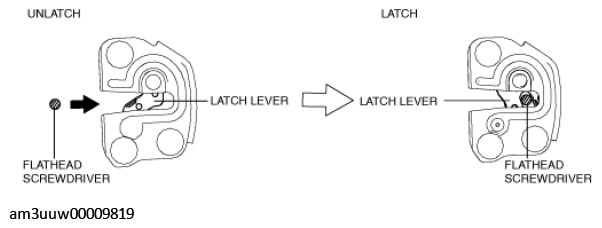

    Fig 3: Checking Latch Side Of Front Door Latch Switch
    G11273477Courtesy of MAZDA MOTORS CORP.
