Passenger's Side

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
  4. Remove the service hole cover.
    Fig 1: Removing Service Hole Cover
    G11467656Courtesy of MAZDA MOTORS CORP.
  5. Loosen the screw from the front outer handle bracket.
    NOTE:
    • The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.
    Fig 2: Front Outer Handle Bracket Screw Location
    G11467657Courtesy of MAZDA MOTORS CORP.
  6. While pressing the front outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the front outer handle bracket from the outer handle garnish.

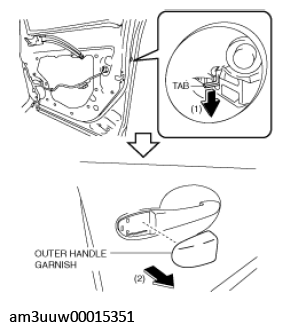

    Fig 3: Detaching Front Outer Handle Bracket From Outer Handle Garnish
    G11467658Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the keyless antenna connector (with advanced keyless entry system).

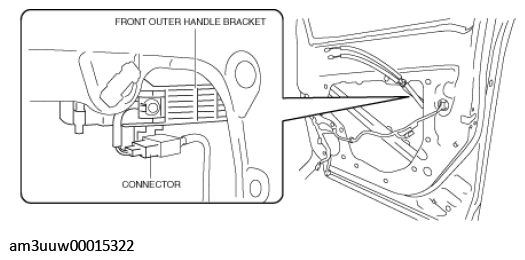

    Fig 4: Keyless Antenna Connector Location (With Advanced Keyless Entry System)
    G11467659Courtesy of MAZDA MOTORS CORP.
  8. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket (with advanced keyless entry system).

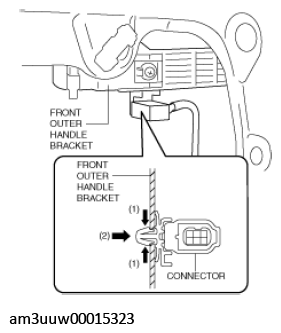

    Fig 5: Detaching Connector Tabs From Front Outer Handle Bracket (With Advanced Keyless Entry System)
    G11467660Courtesy of MAZDA MOTORS CORP.
  9. Remove the door lock knob cable and inner handle cable from the clip.
    Fig 6: Locating Door Lock Knob Cable And Inner Handle Cable
    G11467661Courtesy of MAZDA MOTORS CORP.
  10. Remove the screws.
    Fig 7: Locating Inner Handle Cable Screws
    G11467662Courtesy of MAZDA MOTORS CORP.
  11. Tilt the front door latch and lock actuator in the direction of arrow (1) shown in the figure and lift it in the direction of arrow (2) to detach the hook of the front door latch and lock actuator.

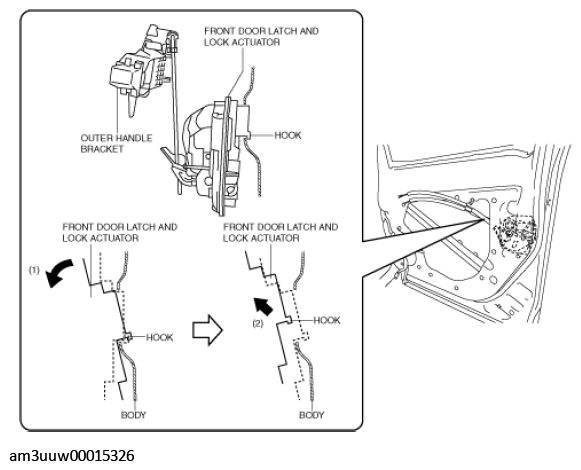

    Fig 8: Tilting Front Door Latch And Lock Actuator
    G11467663Courtesy of MAZDA MOTORS CORP.
  12. Move the front door latch and lock actuator down in the direction of arrow shown in the figure to remove the rod from the rod holder.
    Fig 9: Moving Front Door Latch And Lock Actuator Down
    G11467664Courtesy of MAZDA MOTORS CORP.
  13. Remove the front door latch and lock actuator.
  14. Install in the reverse order of removal.
