Fuel Gauge Sender Unit (Sub)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the "Fuel Line Safety Procedure" referring to the "BEFORE REPAIR PROCEDURE". (See BEFORE SERVICE PRECAUTION .)
  2. If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE .)
  3. Remove the following parts:
    1. Rear seat cushion (6:4 split type) (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear seat under installation bolt (4:2:4 split type) (See REAR SEAT REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Partially peel back the floor covering.

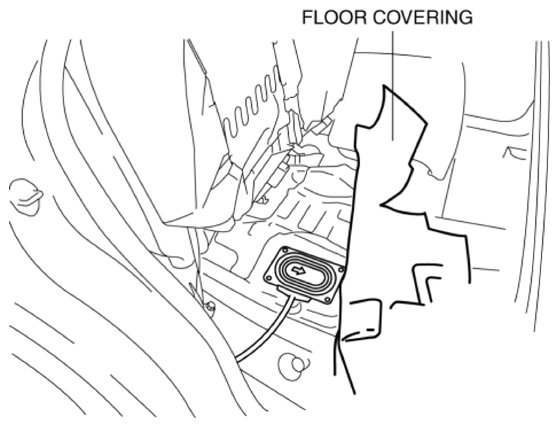

    Fig 1: Removing Floor Covering
    G10939767Courtesy of MAZDA MOTORS CORP.
  5. Remove the screws.

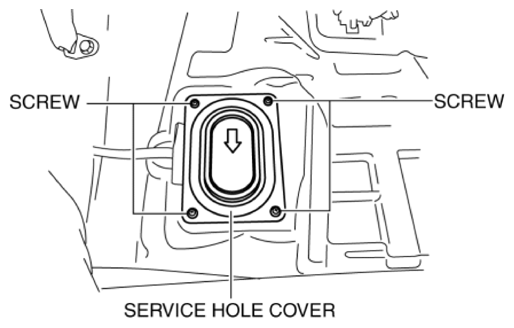

    Fig 2: Removing Service Hole Cover Screws
    G10939768Courtesy of MAZDA MOTORS CORP.
  6. Remove the service hole cover.
  7. Disconnect the connector.

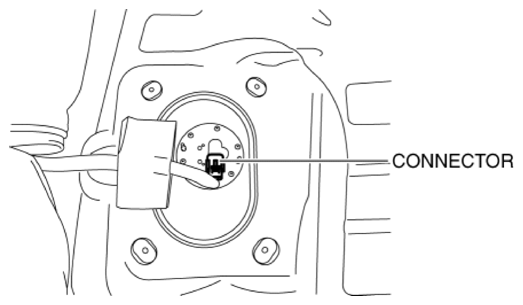

    Fig 3: Identifying Service Hole Cover Connector
    G10939769Courtesy of MAZDA MOTORS CORP.
  8. Remove the screws.

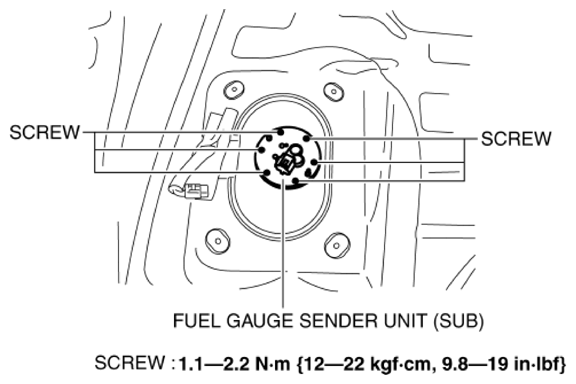

    Fig 4: Identifying Fuel Gauge Sender Unit Screws With Torque Specifications
    G10939770Courtesy of MAZDA MOTORS CORP.
  9. Remove the fuel gauge sender unit (sub).

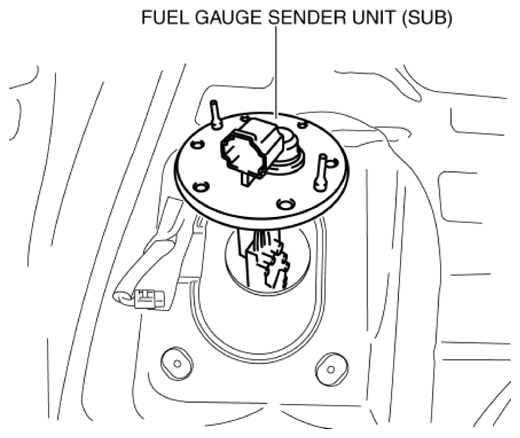

    Fig 5: Removing Fuel Gauge Sender Unit (Sub)
    G10939771Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
  11. Perform the fuel leakage inspection referring to [AFTER SERVICE PRECAUTION]. (See AFTER SERVICE PRECAUTION .)
