Wheel Hub, Steering Knuckle Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor connector (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT
.)
Courtesy of MAZDA MOTORS CORP.

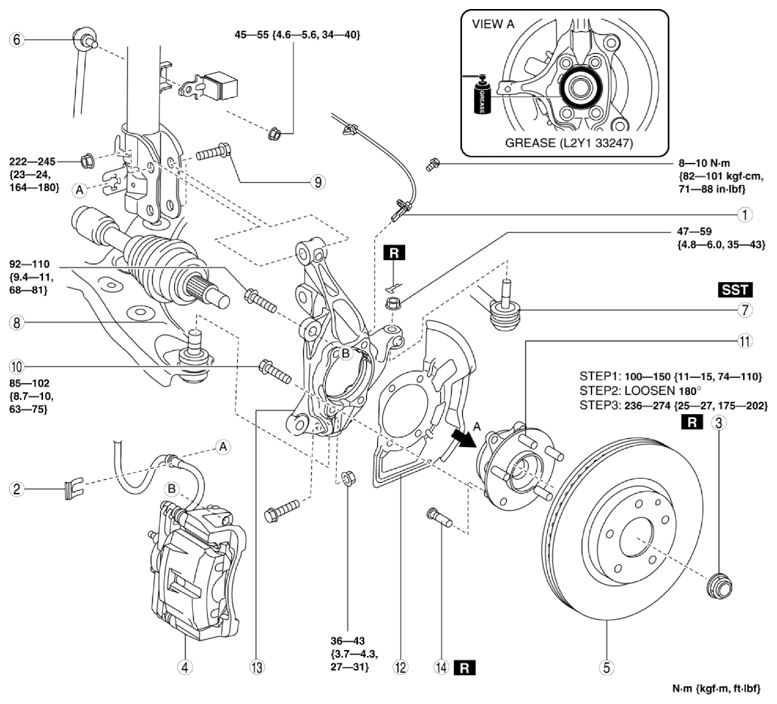

COMPONENT DESCRIPTION1 ABS wheel-speed sensor 2 Brake hose clip 3 Locknut
(See Locknut Removal Note .)
(See Locknut Installation Note .)4 Brake caliper component
(See Brake Caliper Removal Note .)5 Disc plate 6 Stabilizer control link Cupper side) 7 Tie-rod end ball joint
(See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)8 Front lower arm ball joint 9 Front shock absorber bolt
(See Front Shock Absorber Bolt Installation Note .)10 Bolt (wheel hub)
(See Bolt (Wheel Hub) Installation Note .)11 Wheel hub
(See Wheel Hub Installation Note .)12 Dust cover 13 Steering knuckle 14 Wheel hub bolt
(See Wheel Hub Bolt Removal Note .)
(See Wheel Hub Bolt Installation Note .)
