Locknut Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the locknut.
  2. Install a spare nut onto the drive shaft so that the nut is flush with the end of the drive shaft.
  3. Tap the nut with a copper hammer to loosen the drive shaft from the front wheel hub.

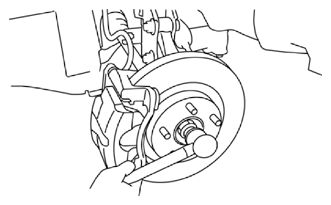

    Fig 1: Loosening Drive Shaft From Front Wheel Hub
    G10936569Courtesy of MAZDA MOTORS CORP.
  4. Separate the drive shaft from the wheel hub.
