Front Axle Location Index

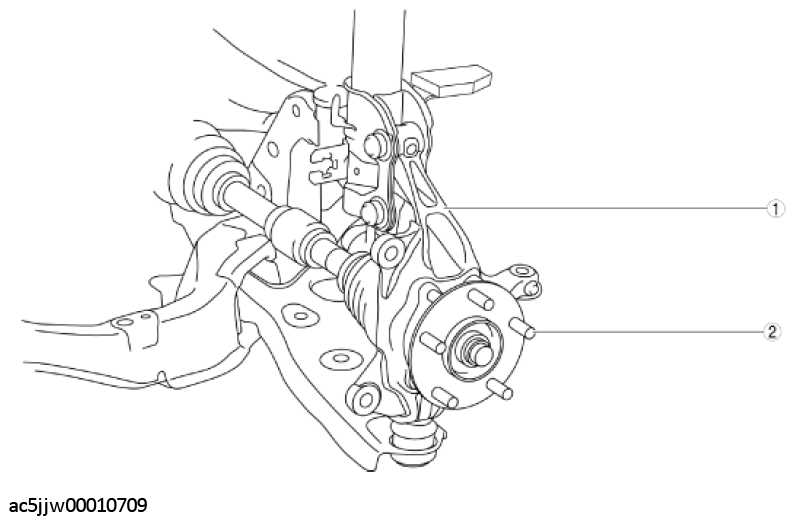

Fig 1: Front Axle Parts Location
G11427206Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Wheel hub, steering knuckle
(See WHEEL HUB, STEERING KNUCKLE INSPECTION .)
(See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)
(See FRONT WHEEL HUB BOLT REPLACEMENT .)
2 Wheel hub bolt
(See FRONT WHEEL HUB BOLT REPLACEMENT .)
