Front Wheel Hub Bolt Replacement

Special Service Tool (SST)

49 T028 3A0 Ball joint puller set

Courtesy of MAZDA MOTORS CORP.

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove the front brake caliper component and suspend it out of the way using a cable. (See FRONT BRAKE DISC REMOVAL/INSTALLATION .)

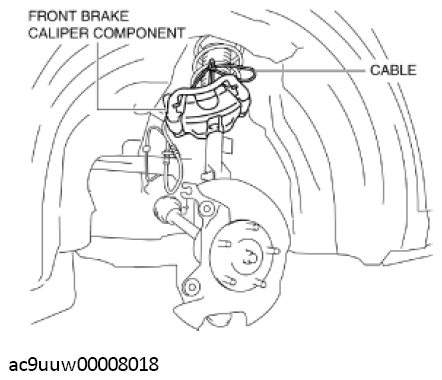

   Fig 1: Removing Front Brake Caliper Component

   Courtesy of MAZDA MOTORS CORP.
3. Remove the front disc plate. (See FRONT BRAKE DISC REMOVAL/INSTALLATION .)

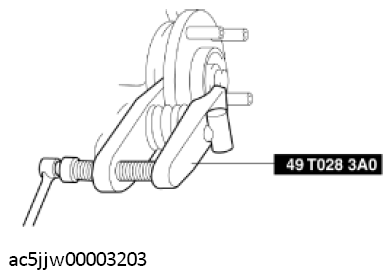

4. Remove the wheel hub bolt using the SST as shown in the figure.
   Fig 2: Removing Wheel Hub Bolt Using SST

   Courtesy of MAZDA MOTORS CORP.
5. Place a new wheel hub bolt in the wheel hub.
6. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.

Fig 3: Installing Wheel Hub

Courtesy of MAZDA MOTORS CORP.
