Rear Drive Shaft Removal/Installation: Notes
Replacement Part
| Locknut Quantity: 1 Location of use: Rear drive shaft |
Rear drive shaft clip Quantity: 1 Location of use: Rear drive shaft |
Oil and Chemical Type
Rear differential oil
Type: MAZDA LONG LIFE HYPOID GEAR OIL SG1
CAUTION:
- Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
- Do not allow a magnetized tool such as a magnetized screwdriver to come into contact with the ABS sensor rotor. If the ABS sensor rotor becomes magnetized it will be unable to read the ABS wheel speed sensor waveform correctly resulting in an ABS system malfunction to be determined and the inability to perform ABS control. If a magnetized object comes into contact with the ABS sensor rotor, it will be necessary to newly replace the rear drive shaft (ABS sensor rotor).
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition off.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Drain the differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)
- Remove in the order shown in the figure.
- Install in the reverse order of removal.
- Add differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)

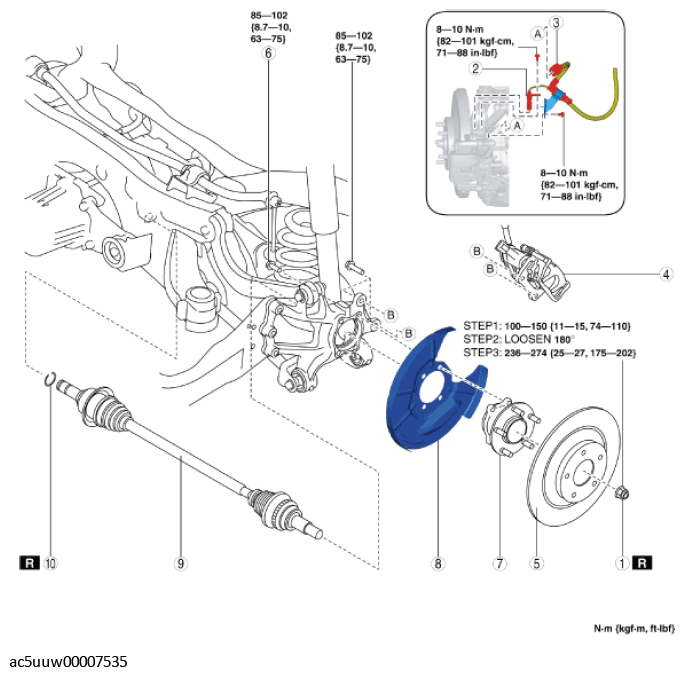

COMPONENT DESCRIPTION
| 1 | Locknut (See Locknut Installation Note .) |
| 2 | Rear ABS wheel-speed sensor |
| 3 | Electric parking brake motor gear unit connector |
| 4 | Brake caliper component (See Brake Caliper Component Removal Note .) |
| 5 | Disc plate |
| 6 | Bolt (wheel hub) |
| 7 | Wheel hub |
| 8 | Dust cover |
| 9 | Rear drive shaft (See Rear Drive Shaft Removal Note .) (See Rear Drive Shaft Installation Note .) |
| 10 | Rear drive shaft clip (See Clip Installation Note .) |
